Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Haeusler boring mills
Model:
VRM HY 2000-6

Specifications

Condition:
used
Stock number:
109258
Subcategory:
Sheet roll
Subcategory 2:
Four-roll round boring machines

Description

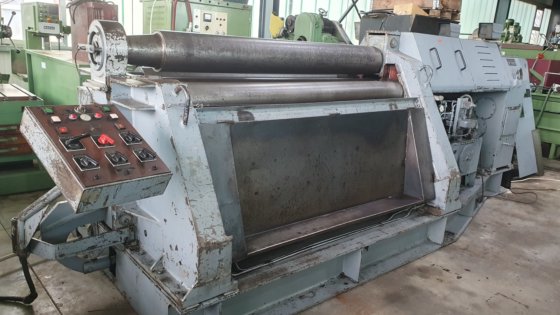

Hydraulic four-roll sheet metal forming machine. Haeusler type VRM HY 2000-6
Machine no .: 1186-1968
Technical specifications:
Max. Working width: 2040 mm
Max. Drift: 2100 mm
Max. Plate thickness: 6 mm
Upper diameter of the sub-roll is approx. 250 mm
Side roll diameter approx.: 200 mm
Stroke of the rollers approx. Each: 220 mm
2 Working speeds
Total driving power approx.: 18 KW
Working height: 1300 mm
Space requirement approx .: L 5450 x D 1900 x H1930 mm
Weight approx. 10500 kg
With:
- both side rollers with motorized delivery for the delivery of conical bends
Hydr. Folding bearings for removing the metal sheet
- Slide coupling
- Right-Left Purchase
- Separate control panel
Used, in good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
We would be glad if our offer satisfies you
