Location:
Lincolnshire, IL
Manufacturer:

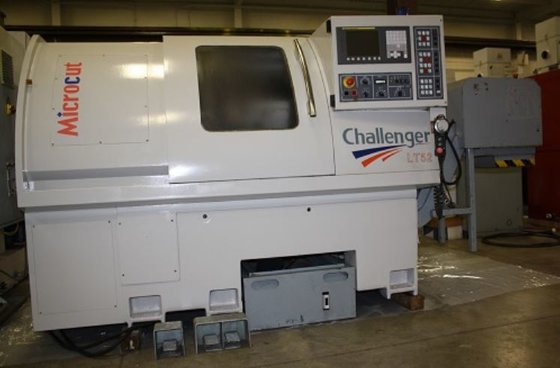

Challenger lathes

Specifications

Condition:
used
Year:
2006
Stock number:
38604
Footprint:
100" L x 72" W
Chuck size:
8.27" / 210mm
Bar capacity:
2.05" / 52mm
Spindle speed:
5000 RPM
X-axis travel:
8.46" / 215mm
Z-axis travel:
20.47" / 520mm
Approximate height:
76" / 1930mm
Approximate weight:
7,000 Lbs.
X-axis servo motor:
2.4 HP
Z-axis servo motor:
2.4 HP
Rapid traverse (x&z):
30 / 30 M/min.
Cutting diameter - maximum:
8.27" / 210mm
Cutting length with turret - maximum:
18.16" / 460mm

Description

Serial No. 051501066 New - 2006
SPECIFICATIONS:
EQUIPPED WITH:
Fanuc Oi-TC CNC Control with Pendanat and RS-232
12 Stations Bi-Directional Turret
8" Hydraulic 3-Jaw Chuck with Master Jaws
Hydraulic Tailstock
Hi-Pressure Coolant System
Chip Conveyor
*Preliminary Specifications Subject to Verification.
