Location:
Lincolnshire, IL
Manufacturer:

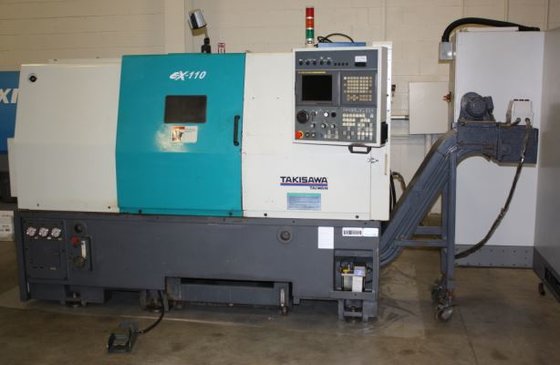

Takisawa lathes
Spindle Bore:
3.38"
Spindle Nose:
A2-8

Specifications

Condition:
used
Year:
2008
Serial number:
CI02E11257
Stock number:
38605
Chuck size:
10"
Bar capacity:
3"
Spinde power:
25 HP
Spindle bore:
3.38"
Spindle nose:
A2-8
X-axis travel:
8 1/2"
Z-axis travel:
28"
Approximate weight:
11,000 Lbs.
Tailstock - stroke:
5.880"
Approximate dimensions:
110"L x 67"W x 71"H
Turret, bi-directional:
12 Position
Tailstock - body travel:
22.880"
Tool shank size - round:
2"
Spindle speed - variable:
50 - 3500 RPM
Tailstock - quill center:
MT#5
Tool shank size - square:
1"
Turning length - maximum:
28"
Chuck size - maximum swing:
19 1/2"
Tailstock - quill diameter:
4 1/4"
Turning diameter - maximum:
15 3/4"

Description

Serial No. CI02E11257 New - 2008
SPECIFICATIONS:
EQUIPPED WITH:
Fanuc 21i-TB Control
10" 3-Jaw Hydraulic Chuck
Miscellaneous Turret Tooling
Coolant Filtration System
Chip Conveyor
*Preliminary Specifications Subject to Verification.
