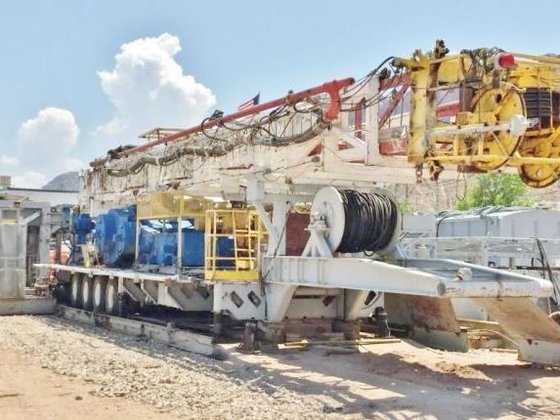

2007 LOADCRAFT Drilling Rigs -
Location:
Moab, UT
Model:
HRI 1000

Specifications

Condition:
used
Year:
2007
Rental:
No
Division:
Equipment
Quantity:
1
Horsepower:
600
Engine make:
CATERPILLAR
Mast height:
18 ft
Mast weight:
425,000 lb
Subcategory:
Land rigs
Subcategory 2:
Drilling rigs

Description

manufacturer: Loadcraft model: HRI 1000M year: 2007 engine specs: (2) CAT C-15 Diesel horsepower: 540 estimated max depth rating: 12,000 with 4 1/2" 16.6 ppf Drill Pipe mast or derrick: Heartland; 116 ft; 410,000 Lb Weight Capacity drawworks: Single Drum; Hearland; Hydromatic Brake-224 DR; Cable Size- 1 1/8"; 2 Clutches; (2) CAT C-15 with 500 Horse Power each mounted on: Loadcraft 4 Axle trailer rotary table and topdrive: American Block 27 1/2"; 0-125 rpm blocks: TFI YG 180; 200 ton capacity; 10 lines rig condition: Good location: Moab, Utah tire size: 12R22.5 details: Pipe Spinners: OWI 35 CF Hydraulic Elevators: 3 1/2" and 4 1/2" 175 ton Bottle Neck Catwalk: 53' L x 40" H x 60" W Pipe Racks: 29' x 40" Drill Pipe: 3 1/2" 13.30# or 4 1/2" 16.60# Drill Collars: (15) 6" and (6) 8" Mud Pumps: (2) Bomco F-1000; 1,000 Horse Power each; Powered by CAT 3508; 6 1/2' x 10' Stroke; 2500 Lbs Max Continuous Operating Pressure; 120 spm Mud System: (2) 6'H x 10'W x 40'L; 375 Bbl each; 5 compartments; SHALE SHAKER- (2) Derrick 48 Series; 3 Screen; 1 CHARGE PUMP, 1 MIXING PUMP, 1 DESANDER PUMP, 1 DESILTING PUMP [all 5x6] BOP: Townsend Type 80 Double Hydraulic; 11"; 5000 pressure rating; Rotating Head: Washington Accumulator: Chiles Type 80; 250 gallon capacity of hydraulic fluid; 6 stations; 16 pressure bottles; Electric Motor Choke Manifold: Doyles 3" 5000 Light Plant: (2) 350 KW Marathon; Powered by 14 L Detroit engines; 645 Horse Power Each Drilling Recorder: Pason EDR; 24 hour chart type To see more pictures, details, and pricing information, visit
