2009 MAYER PS 8 FRONT

2009 MAYER PS 8 FRONT LOAD, AUTOMATIC PANEL SAW [PH-012234] in United Kingdom

Location:
United Kingdom
Manufacturer:
Mayer
Model:
PS 8

Specifications

Condition:
used
Year:
2009
Recnum:
PH-012234
Comments:
Motivated seller says "MAKE A REASONABLE OFFER"... under power & available for inspection!
Machtype:
FRONT LOAD, AUTOMATIC PANEL SAW
Condition info:
(7-9) Excellent condition [7]
Current status:
Active
Elect./voltage:
400/440 V, 50/60 Cy, 3 Ph.
Appr. repl. cost:
120000

Description

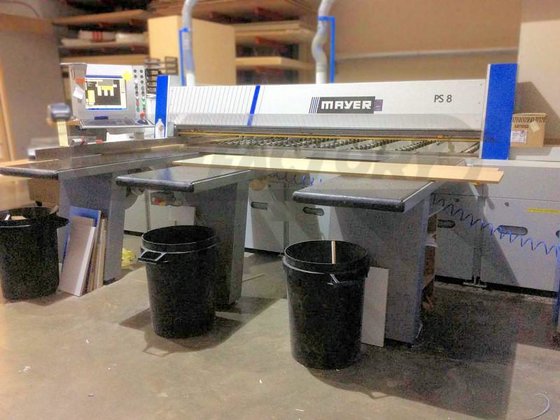

MAYER PS 8 FRONT LOAD, AUTOMATIC PANEL SAW

-- Specifications:125.9" (3,200 mm) Cutting length & 122" (3,100 mm) pull back, 4.1" (105 mm) max. saw blade projection,12 HP (9 kW) main saw motor, 355 mm main saw blade (3,800 RPM), 30 mm bore dia.; 1.5 HP (1.1 kW) score blade, 127 mm (8,680 RPM), 30 mm bore.Electronically controlled saw blade height adjustment, electronically controlled scoring blade horizontal (side-to-side) adjustment; "QUICK CHANGE" main & scoring blade system.

-- Saw Carriage:Infinitely variable forward cutting speed from 5 - 262 FPM (1.5 - 80 MPM), constant return speed of 262 FPM (80 MPM);Automatic cutting length adjustment, rack & pinion drive (not chain), AC Servo motor drives on the saw carriage with rack & pinion on hardened & ground guideways

-- Pusher Fence:Electronically controlled overhead program fence, forward speed from 0 - 82 FPM (0 - 25 MPM), return speed of 196 FPM (60 MPM); fence retracts 122" (3,100 mm) behind cutting line, AC Servo motor drives on the pusher fence with rack & pinion on hardened & ground guideways.(6) Material gripper clamps open up to 105 mm (4.1"), of which (3) are closely spaced in cross-cut area and the other (3) are at equal distance in rip cut area.

-- Operator & Machine Control:Mayer "PC 5400" + Windows operating system with "REAL TIME" graphic display, 14" color monitor mounted in a pivoting console;3-COM Network interface 10/100 MBit/s with RF45 (TP) connection; (2) serial & (1) parallel interfaces & SVGA graphics adapter, data input by keyboard or downloading from office PC is possible.PC 5400 Control system features automatic cutting length (material is scanned by sensor underneath the packet on the saw bed), electronically controlled automatic cutting height adjustment (also can be used for grooving by entering depth and width of groove at control)Automatic trim calculation, constant display of remaining material in both axis during programming (eliminates need for operator calculations during programming).

-- Complete With:Left angle crosscut fence 78.7" (1,999 mm) long, automatic cross-cut aligner from .75" - 47.2" (19 - 1,199 mm) with automatic presetting)Rear slotted pressure beam to minimize offcut, (3) front mounted air flotation tables 79" x 24" (1,999 x 599 mm), segmented transparent plastic safety guards on front of pressure beam & wire mesh screen enclosure around rear machine table.

-- Actual model is MAYER PS/8/3200
