2004 SHAW ALMEX TF-4-8 THERMOFORMING

2004 SHAW ALMEX TF-4-8 THERMOFORMING VACUUM PRESS [PM-010396] in United States

Location:
United States
Price:
$37,900 USD
Manufacturer:
PM
Model:
TF-4-8

Specifications

Condition:
used
Year:
2004
Recnum:
PM-010396
Comments:
A very economical solution for Thermofoiling shaped parts/ fantastic price!
Machtype:
THERMOFORMING VACUUM PRESS
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Elect./voltage:
240 V, 60 Cy, 3 Ph.
Appr. repl. cost:
75000

Description

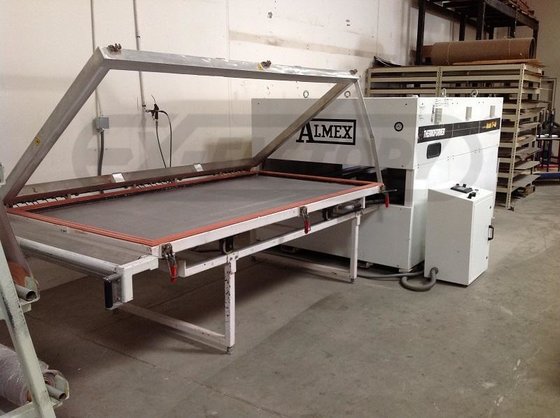

SHAW ALMEX TF 4-8 Thermoforming Vacuum Press:48" X 96" Thermoforming Laminating Press, w/vacuum "membraneless" operation designed for 57" wide vinyl products; works without hydraulics or pneumatic cylinders. The unit uses a 3 HP BUSCH vacuum pump and 350 Watt Infa-Red bulb heaters during the Thermoforming cycle.Technical Specifications:

-- Loading trays dim. are 52" x 100" ID x 1.75" deep tray system with magnetic pin system for loading and unloading.

-- Individually heated and thermostatically controlled Infa-Red bulb heaters offer operating temperatures up to 300° F.

-- Loading/unloading table at the infeed, 64" wide x 123" long.

-- Operating pressure 75 PSI, max. operating temperature 300° (most foils work at 150° - 180° F range). -

-- Press dimension; 10' Long X 66" high x 73" wide.Machine Features:

-- Control cabinet with ALLEN BRADLEY PLC with "Panelview 550" Touchscreen programmable controller for:

-- Laminating cycle, cycle and heat controls with (4) digital timers;

-- Thermostat & timers to handle different pressing conditions.

-- Stores and recalls "recipes" (individual programs) for specific materials and applications.Includes 10-Roll vinyl rack, without casters, for trouble free lay-up of vinyl over the substrate
