AMERICAN Process Twin Shaft Fluidizer
Location:
Los Angeles, CA
Manufacturer:
American
Model:
Process Twin Shaft Fluidizer Zone Mixer

Specifications

Condition:
used
Stock number:
8047
Subcategory:
Paddle mixer
Subcategory 2:
Mixers & granulators

Description

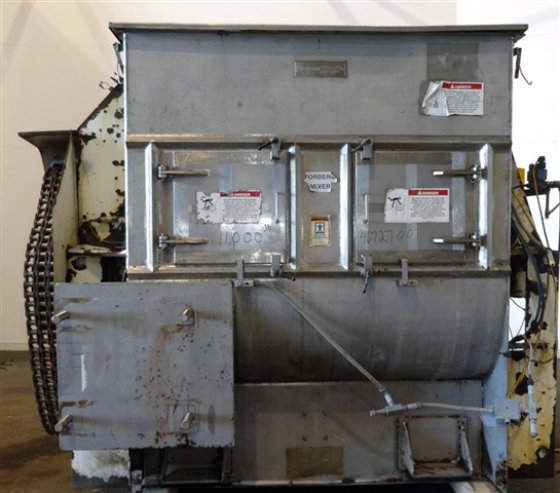

Used- American Process Forberg Twin Shaft Fluidizer Zone Mixer, Model FZM-70, 70 Cubic Feet Capacity, 304 Stainless Steel. Non-jacketed chamber approximately 73-5/8" wide x 86-1/16" long x approximate 60" deep. (2) Approximate 5-1/2" diameter shafts with 14 paddles (28 total) 14-1/2" x 12-1/2" x 5/16" thick welded to 2-3/4" diameter posts. Driven by a 50 hp, 3/60/230/460, 1760 rpm gear motor, 37.42 to 1 ratio, approximate 23 rpm agitator speed. (2) Air operated Bombay bottom outlet doors, approximately 12" wide x 72" long. Bolt on top cover with 17" feed, 6", 4" vent, 12-1/2" x 12-1/2" and (2) hinged access doors, (4) 20" x 20" hinged side access doors. Split packing glands with air purge seals, outboard roller bearings. Includes feed hopper. Serial# 5136, built 1998.
