PFAUDLER Glass-lined Reactor 30 gallon
Location:
Los Angeles, CA
Manufacturer:
Pfaudler reactors
Model:
Glass-lined Reactor

Specifications

Condition:
used
Stock number:
7076

Description

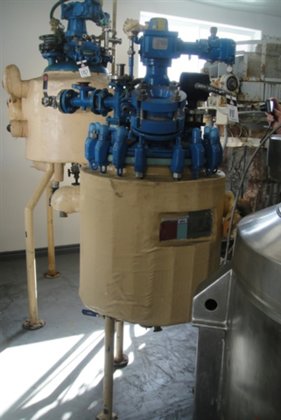

One used Pfaudler Clamp Top Glass Lined Reactor, 20 Gallon, 9115 Blue Glass, Vertical. Approximately 20" diameter x 14-1/2" straight side, dished clamp top, dish bottom. Internal rated 150/Full Vacuum psi at -20 to 450 degrees F., carbon steel jacket rated 125 psi at -20 to 450 degrees F. (1) Fin baffle, 3 blade retreat curve agitator driven by a Pfaudler variable speed drive, size 2.5 TWV, model SV-48270C-AKC, serial# 24981X, ratio 5 to 1, set up for hydraulic drive, connection for drive broken off, and missing, no power pack. Openings top (2) 1-1/2", (4) 2", 4" hand hole with sight glass cover. 2" Center bottom outlet. Provision for 3 legs. National Board# 51396, serial# J062355, built 2005.
