PFAUDLER Glass-lined Reactor 200 gallon
Location:
Los Angeles, CA
Manufacturer:
PFAUDLER
Model:
Glass-lined Reactor

Specifications

Condition:
used
Stock number:
7088

Description

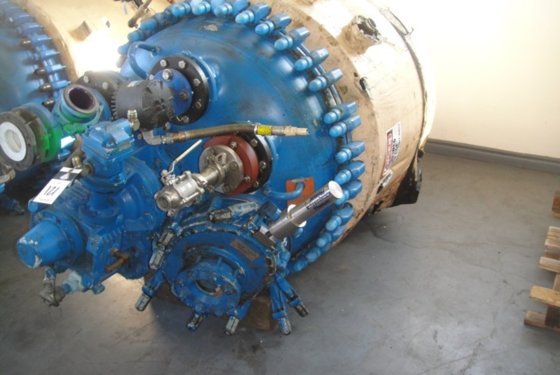

One used Pfaudler Clamp Top Glass Lined Reactor, 200 Gallon, 9115 Blue Glass, Vertical. Approximately 40" diameter x 36" straight side, dished clamp top, dish bottom. Internal rated 100/Full Vacuum psi at -20 to 450 degrees F., carbon steel jacket rated 90 psi at -20 to 350 degrees F., 75 psi with internal vacuum. (1) "H" baffle, 3 blade retreat curve agitator driven by a Pfaudler drive, size 3, model DWV5031CAKC, serial# 95222211-002, ratio 15 to 1, set up for hydraulic drive, no power pack. Openings top (4) 4", 6", 12" X 16" oval man way with assist cover. 3" Center bottom outlet. Provision for 4 legs. National Board# 47976, serial# J002279, built 1995. Spark test available
