1997 MUELLER Twin Motion Processor
Location:
Los Angeles, CA
Manufacturer:
Mueller tanks
Model:
Twin Motion Processor

Specifications

Condition:
used
Year:
1997
Stock number:
7319
Subcategory:
Jacketed tanks
Subcategory 2:
Tanks and kettles

Description

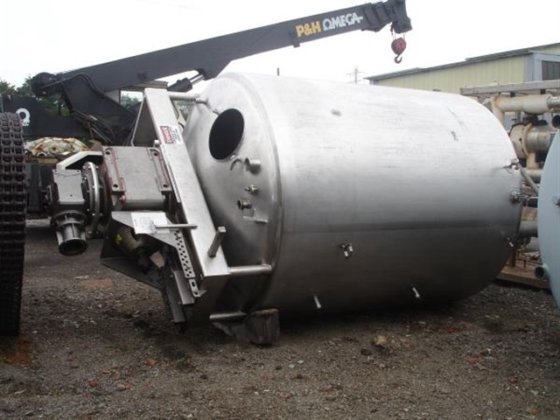

One (1) used 3000 gallon Mueller twin motion processor, 316 stainless steel construction, 90" diameter x 107" straight side, dish top, 27" deep cone bottom, jacketed on bottom and up straight side for 90 PSI @ 250 F, twin motion agitator with bottom and side wall scrape driven by 20 HP 230/460 volt XP motor, 142.92:1 gearbox ratio, 12 RPM shaft speed, inner 3 tier 4 blade pitched turbine style agitator driven by 15 HP 230/460 volt XP motor, 43.96:1 opposing gearbox ratio, 40 RPM shaft speed, 18" manway, (3)4", (3)3", (5)2" top nozzles, 4" center bottom outlet, mounted on 3 stainless steel legs, 304 stainless steel skin over jacket, serial# 191221-1, National Board# 26884, new 1997. AS IS JACKET LEAKS.
