Location:
Elk Grove Village, IL
Manufacturer:
Tuda
Model:

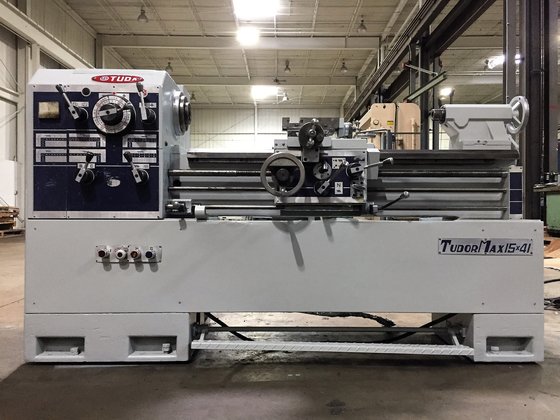

TudorMax 15X41 15" X 41" Precision Tool Room Engine Lathe
Spindle Bore:
2.25"
Distance between Centers:
40"

Specifications

Condition:
used
Year:
1983
Spindle bore:
2.25"
Spindle nose:
D1-6
Equipped with:
Inch Metric Threading, Quick Change Tool Post, 10" 3 Jaw Chuck, Drill Chuck, Tailstock
Spindle speeds:
40-1,500 RPM
Swing over bed:
15"
Main motor drive:
5 HP
Swing over cross slide:
8.5"
Tailstock spindle taper:
#4 MT
Maximum distance between centers:
40"
Subcategory:
Lathes, engine

Description

10" 3 Jaw Chuck, Inch Metric Threading, Tailstock, 60-1500 RPM
