TSC MANUFACTURING Hoisting Equipment -
Location:
Houston, TX
Manufacturer:
TSC MANUFACTURING

Specifications

Condition:
used
Division:
Equipment
Subcategory:
Winches
Subcategory 2:
Hoisting equipment

Description

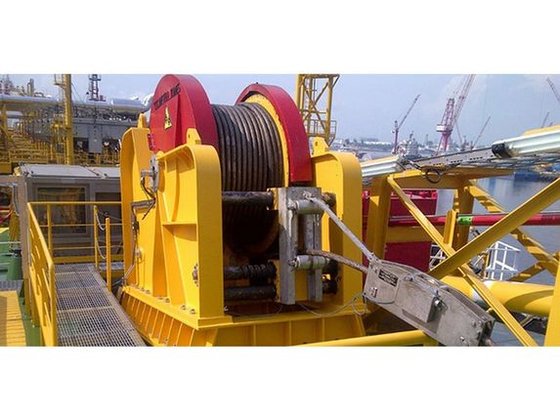

FPSO Installation/ Riser Winch Packages Ansell Jones has extensive experience in providing high capacity mooring and riser installation winches for permanently moored offshore production and storage vessels. These winches have extremely high line pulls up to 600TE. Ansell Jones winches are designed and manufactured under the supervision of a third party such as DNV or ABS, as required by the client. Features: - PLC controlled to give condition monitoring of winch and HPU status - Designed to suit space available and deck layout for pull in operations - Hazardous area and IP rated to suit the project requirements - Typical line speed 3m/min at max load, 6m/min at reduced load and 10m/min at no load - 1.5 x SWL failsafe braking holding capacity - Full load an line monitoring capabilities - Drum suitable for wire rope or direct chain gypsy as required - Complete rigging packages supplied for pull in operations - Installation and commissioning support provided
