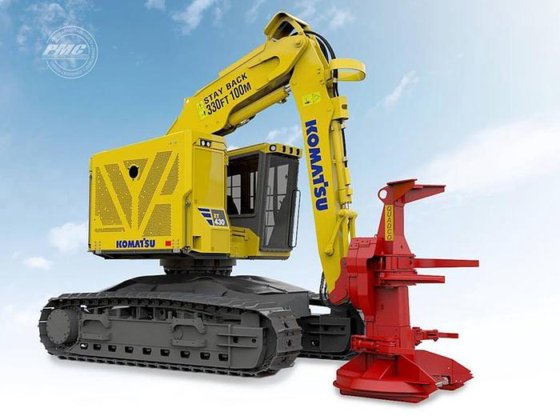

2024 KOMATSU XT430-5 in Denver, CO, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Type
- Non-Leveling
- Aspiration
- VGT™ Turbocharger, infinitely adjustable with electronic controls. High pressure fuel injection, in cylinder advanced combustion technology, cooled EGR.
- No. of cylinders
- In-line, 6-cylinder
- Bore
- 4.49 in
- Stroke
- 5.69 in
- Piston displacement
- 543 in³
- Horsepower
- Rated - 300 HP @ 2,000 working rpm
- Peak torque
- 1160 lbs.-ft. @ 1,600 rpm
- Fan drive type
- Hydraulic
- Note
- Operating weight includes feller buncher boom, arm, 1/2 tank of fuel, rated capacity of lubricants, coolant, operator and standard equipment.
- Alternator
- 24V, 100A
- Work lights
- 11 - LED
- Implement pump
- Variable displacement piston, Max Flow 86 gpm
- Attachment pump
- Variable displacement piston, Max Flow 53 gpm
- Saw pump
- Variable displacement piston, Max Flow 38 gpm
- Track drive pump
- 2x Variable displacement piston, Max Flow 44 gpm
- Fan pump
- 2x Gear, Max Flow 11 gpm
- Charge pump
- 2x Gear, Max Flow 25 gpm
- Travel motor
- Variable displacement piston
- Swing motor
- Fixed displacement bent axis piston
- Cooling
- Independent Radiator/CAC/Hydraulic oil coolers with thermostatically controlled fans
- Drive method
- Hydrostatic
- Steering control
- Foot pedals
- Max tractive effort
- 64,926 lbf.
- Max travel speed high
- 2.9 mph
- Max travel speed low
- 1.6 mph
- Parking brake
- Hydraulic
- Service brake
- Hydraulic
- Rotation
- Continuous Rotation
- Bearing
- Heavy duty, 22-bolt single row bearing
- Swing speed
- 0 to 7.0 RPM
- Swing torque
- 58,341 lbs.-ft.
- Swing brake
- Dynamic
- Carbody
- 8'4" (2540 mm) gauge, 10'4" (3140 mm) overall width with storage trunk
- Track frame
- Box-section, bolted
- Track type
- Grease sealed
- Track pitch
- 8.5 in
- No. of shoe links
- 47 per side
- Track rollers
- 9 per side
- Bushings and rollers
- Standard
- Reach at 1.5 m 5' height
- Maximum 21 ft. 7 in | Minimum 7 ft. 8 in
- Cutting swath*
- 13 ft. 11 in
- @ 3.0 m 10'
- 26,235 lbs.
- @ 4.6 m 15'
- 17,857 lbs.
- @ 6.0 m 20'
- 10,803 lbs.
- @ full reach
- 9,921 lbs.
- Fuel tank
- 222 US gal
- Cooling system
- 9.43 US gal
- Engine oil pan
- 4.99 US gal
- Final drive per side
- 2.91 US gal
- Swing gear box
- 1.14 US gal
- Hydraulic tank
- 57 US gal
- Def
- 15 US gal
- Gear box (pto)
- 1.63 US gal
- Hood tilt
- 1.19 US gal
- Track shoes
- SG 24 in
- Operating weight
- 66,359 lbs.
- Ground pressure
- 8.5 psi
- General information
- Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, which is either standard or optional. Stated weights are based on standard equipment.
- Screen
- 7" (18 cm) LED color touch screen
- Undercarriage
- Track drive, closed loop. Track motors, 2 speed VDPP auto=shift with variable speed control. Track adjusters, hydraulic. Track chain, greased sealed Komatsu 8.5" pitch. Track shoes, 24" (600 mm) single grouser.
- Guards and covers
- Muffler with blanket, rubber debris skirt.
- Engine and related items
- Cummins QSL9, liter. Air cleaner, dry type with air intake pre=cleaner. Auto idle-shutdown system. Engine compartment service light. Engine interface monitoring system. Cooling: Engine - temperature- sensing auto-reversing fan. Hydraulic: oil cooler - temperature- sensing auto- reversing fan. Charge air cooler: temperature sensing auto-reversing fan.
- Electrical system
- Alternator: 100 ampere, 24V. Batteries: 2 x 12V, 950 AH, Electrical system master disconnect switch. Electrical joystick/foot pedal controls.
- Pumps
- Attachment - 1x VDPP, 53 gpm (200 ltr/min), Implement - 1x VDPP, 86 gpm (324 ltr/min), Saw Drive - 1x VDPP, 38 gpm (143 ltr/min), Track Drive, 2x VDPP, 44 gpm (167 ltr/min) each, Charge, 1x Ger, 25 gpm, (95 ltr/min).
- Hydraulics
- Load sensing hydraulic system. Hydraulic tank oil refill pump, 24V. Hydraulic tank vacuum pump. Hydraulic oil cooler, temperature auto reversing fan.
- Operator environment
- ROPS/OPS/FOPS/TOPS/FOG/WCB/Oregon OSHA Certified Forestry Cab. Automatic air conditioner. Heater & defroster with pressurization and 6 adjustable vents. 12V power outlets (2). Adjustable cellphone holder. Coat hook, magnetic and movable base. Cup holder, fold down/up. Literature box with cover. Lockable door. Insulated drink bottle & lunch box cooler. Ventilation fan.
- Other standard equipment
- Continuous Rotation. Emergency escapes, 3 (front window, side door and roof hatch). Fire extinguisher, 10 lb. hand held. Fire suppression system, automatic liquid chemical.
- Arm
- Feller buncher 13'0" (3960 mm) straight with tree deflector
- Boom
- Feller buncher 14'10" (4,530 mm)
- Hydraulic systems
- Heater, fuel-fired jacket water and hydraulic oil pre-heater
- Track shoe
- 28" (700mm) single grouser. 28" (700 mm) double grouser
- Other optional equipment
- Carrier Rollers. Pump drive oil cooler. Side view monitoring system (1 camera). Uptime spare parts kits: Base machine, Engine filters.
- Category
- Feller Bunchers in USA
- Subcategory
- Forestry equipment
- Listing ID
- 100208133
Description
KOMATSU XT430-5 TRACKED FELLER BUNCHER — YOUR PRODUCTION PARTNER
Our goal is for you to be most productive, even in the tightest felling areas. That is where the XT430-5 tracked feller buncher’s small, light footprint and smart design is most efficient. The state-of-the-art cab and controls ensure your ultimate comfort and efficiency while enhanced servicing features minimize maintenance downtime. Significantly greater lift capacity at full reach*. 10% more horsepower/16% more torque/5% lower fuel consumption*. Maximized uptime with optimized serviceability + Komtrax + Komatsu Care. *Compared to XT-3 models.
Tackle tough forestry jobs with confidence using Komatsu wheeled harvesters, forwarders, log loaders, swing machines, felling heads and harvesting heads. Forestry work is often in the most rugged terrain and brutal conditions — and Komatsu forestry equipment is engineered for the task.
FEATURES & BENEFITS
OUTSTANDING SERVICEABILITY
Gull-wing engine hood folds down for easy access to all engine service points, and doubles as an elevated work platform. Four additional swing-out doors open wide to provide easy servicing of all key components. All major service points can be easily and quickly accessed.
EXCEPTIONAL MANEUVERABILITY AND MULTIFUNCTIONING
Easily work through dense forests with a short-tail swing. Cut close to the tracks with the proven set-back boom design. Powerful swing torque for demanding applications. Closed-loop track drive with dedicated pumps allows simultaneous operation of travel, swing, boom and tools for increased productivity.
INCREASED LIFT CAPACITY
Due to refined boom and arm geometry, significantly greater lift capacity is achieved at full reach vs. previous models. Plus, this machine has excellent balance between boom lift and arm holding capacity. Can be equipped with a wide selection of Quadco high-speed disc saws.
ENGINEERED MODERN FORESTRY CAB
Excellent comfort and visibility for total operator capability all day long. Positioned on the left side with superior visibility, especially of the tracks. Sloped roofline adds headroom for the operator. High-capacity automatic air conditioner, heater and defroster. Premium optional seat is ergonomic and heated/cooled.
CUSTOMIZABLE OPERATOR CONTROLS
Advanced IQAN-MD4 digital control system enables customized control patterns and rates for up to three different operators. Helps to ensure precision and maximize multioperator productivity.
RUGGED UNDERCARRIAGE
Using Komatsu engineering expertise, the tough and robust undercarriage provides significantly longer service life and day-to-day reliability.
POWERFUL, FUEL-EFFICIENT ENGINE
Get more done with the powerful and efficient Cummins QSL9 engine. 10% more horsepower; 16% more torque; up to 5% lower fuel consumption compared to XT-3 models. EPA Tier 4 final emissions certified.
HYDRAULIC PROTECTION
Robust forestry-specific guarding system covers the boom/arm/rear hydraulic tubes and hoses to help protect them from productivity-robbing operational hazards and debris.
QUADCO HIGH-SPEED DISC SAWS
Can be factory-equipped with a broad selection of the legendary Quadco high-speed disc saws.
REDUCED HYDRAULIC OIL NEEDS
Innovative new hydraulic tank system design requires 55% less hydraulic oil compared to the XT-3 models which lowers your maintenance costs.
STANDARD KOMTRAX
Easily monitor vehicle usage insights that can boost productivity and aid in controlling cost with our standard telematics system. Monitors and records data such as location, operation map and fuel consumption. Notifies you when maintenance is due and helps keep your machine running at peak performance.
KOMATSU CARE
Every new Komatsu XT-5 is covered by our Komatsu Care maintenance program, so you can keep your machine producing at its best. For the first three years or 2,000 hours (whichever occurs first) we take care of most regular service, inspection, filter and fluid replacement, and labor – at your location, and using only genuine Komatsu fluids and filters.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
