SYSTEM TM OPTI-STACK 3000 VACK AUTOMATIC STACKER in Lahti, Päijät-Häme, Finland
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Category
- Planers and Moulders in Finland
- Subcategory
- Sawing
- Subcategory 2
- Planing
- Subcategory 3
- Scanning
- Subcategory 4
- Compression
- Subcategory 5
- Mechanization
- Subcategory 6
- Wood processing
- Subcategory 7
- Woodworking machines
- Subcategory 8
- Milling and finger jointing
- Listing ID
- 100476293
Description

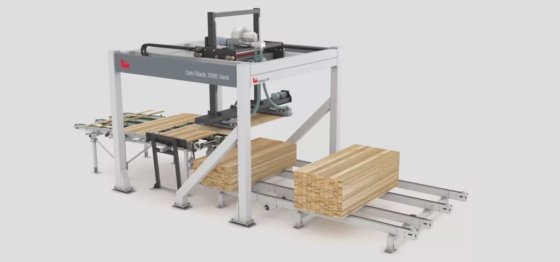

Opti-Stack 3000 Vack is a vacuum stacking unit for stacking partial or complete layers of workpieces, which is placed after main machines such as cross-cut saws, planers, end tenoners, band saws and sanders.
Opti-Stack 3000 Vack consists of two vacuum grippers, which are suitable for stacking short workpieces (380 – 2,500 mm) with a maximum capacity of 5 layers/min. The workpieces can be of different lengths or the same length. The vacuum grippers have a technology based on check valves that automatically detects and closes the valves in places where there are no workpieces. This ensures safe lifting of workpiece layers of different lengths or widths without having to adjust the vacuum grippers.
The foam of the vacuum gripper adjusts to the shape of the workpieces before lifting. This maximizes the vacuum and thus the load-lifting capacity.
