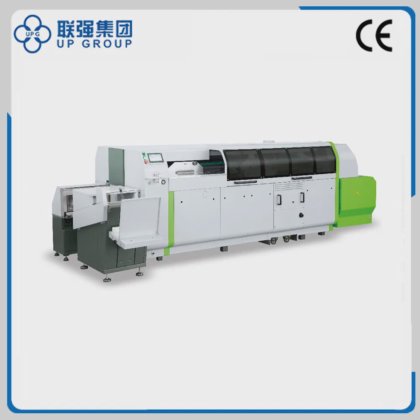

LQ-BT50/5FE Fully Intelligent Ellipse Binding Machine (CNC Fully Automatic Adjustment) in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Classification of punching machine
- Automatic Punch
- Thickness
- 2-50mm
- Binding speed
- Max: 2100 Books/ Hour
- Max. binding size
- 450x308mm
- Min. binding size
- 140*105mm
- Weight
- 2200Kg
- Power
- 14kw
- Transport package
- Wood
- Specification
- 4390*2130*1350mm
- Hs code
- 8440102000
- Category
- Book Binding in China
- Subcategory
- Office supplies
- Subcategory 2
- Binding machine
- Listing ID
- 100478416
Description
Product Description
This machine adopted a computer operation system, a mill chamber construction, side rubber wheel, indentation wheel, book-wrapping table.cover size adjuster, auto computer setter. As a result it can finish all the processes in one minute. lt is controlled by a frequency controller and PLC It is assembled with photoelectric cells, auto tester and touch screen displayer. There is digital display function in the glue breaking function back and forth, mill back, glue breaking glue pot and covering adjustment in gluing in the back. The press track wheel has micro adjustment functions constantly, the book output is using robots vertical collecting way and protects the book back forming in better way. This machine not only uses lock line gluing packaging, but also unwiring gluing packaging, which is the deal equipment for the unwiring gluing packaging and wiring packaging in the printing factories of wide-range universities.
