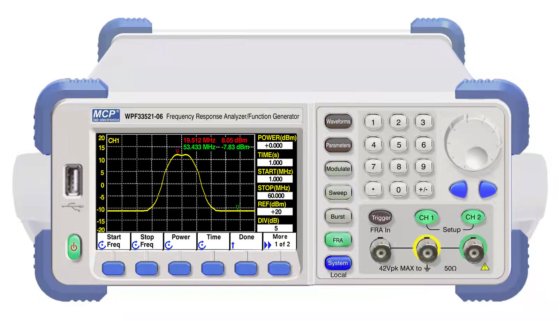

MCP WPF33521 FREQUENCY RESPONSE ANALYZER & FUNCTION GENERATOR in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- . multi modulation function
- AM, DSSC - AM, FM, PM, FSK, ASK, BPSK and logarithm/linear sweep
- . various input and output
- sweep output & input ,waveform output, synchronous signal output, external modulation input, counter input,
- Sine
- 1μHz~60MHz
- Square
- 1μHz~15MHz
- Ramp
- 1μHz~1MHz
- Pulse
- 1μHz~15MHz
- Ch1
- ±1%±0.25% amplitude ±2mV
- Internal
- 1μHz ~ 100 kHz , 1μHz resolution, 1μSa/s ~ 50 MSa/s (Arb), 1μSa/s resolution
- External
- 1μHz ~100 kHz (-3dB)
- Category
- Test Generators in China
- Subcategory
- Lab electronics
- Subcategory 2
- Test instruments
- Listing ID
- 100658145
Description
WPF33521-06/ WPF33521-10/ WPF33521-30/ WPF33521-60
FREQUENCY RESPONSE ANALYZER & FUNCTION GENERATOR
Features
. Frequency response analyzer & function generator dual function
. Wide sweep frequency up to 60MHz
. Dual channels function/arbitrary waveform generation
. Channel independence, coupling, track working mode
. 150 MSa/s sampling rate and 14-bit vertical resolution per channel
. Output of 6 standard waveforms, built-in 50 kinds of arbitrary waveform
. 1uHz~ 6M/10M/30M/60M frequency range for main waveform
. 10Hz ~ 250 MHz equal-accuracy frequency counter
. Standard USB (H), USB (D), LAN and optional GPIB interface
10 MHz clock input, external trigger input, power signal output/power meter input
Technical Data
WPF33521-06
WPF33521-10
WPF33520-30
WPF33521-60
CH1,CH2
Output frequency
Output amplitude
2mVpp~20Vpp (High Z) ≤20MHz (CH1)
2mVpp~10Vpp (High Z) ≤60MHz (CH1)
1mVpp~10Vpp (50Ω) ≤20MHz (CH1)
1mVpp~5Vpp (50Ω) ≤60MHz (CH1)
2mVpp~6Vpp (High Z) ≤60MHz (CH2)
