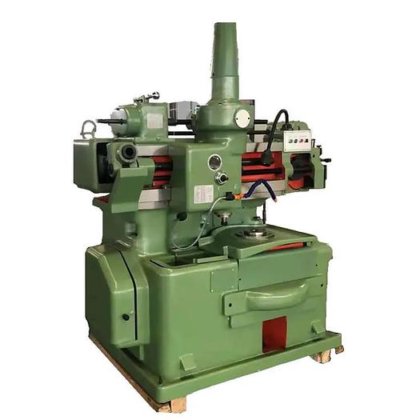

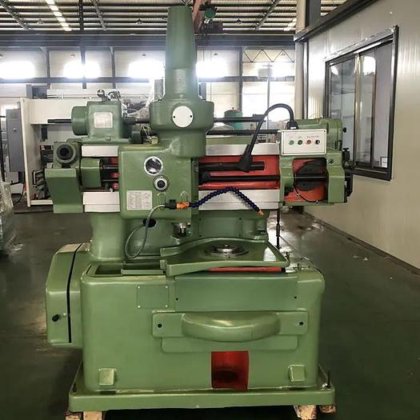

Y54A Gear Shaping Machine Vertical Small Gear Forming Machine Tool Precision Gear Processing Machine Tool in Zhengzhou, Henan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Place of origin
- Henan China
- Cnc or not
- Normal
- Video outgoing-inspection
- Provided
- Machinery test report
- Provided
- Core components
- Gearbox motor Gear
- Voltage
- 380V
- Dimension(l*w*h)
- 1750x1300x2060mm
- Key selling points
- Competitive Price
- Weight (kg)
- 4500
- Power (kw)
- 5.5KW
- Machine type
- Vertical Gear Hobbing Machine
- Gear capacity
- Universal Gear
- Max modulus
- 6mm
- Max work piece diameter
- 500mm
- Max machining width
- 450mm
- Scope of main tool turning speed
- 40-250/9
- Between tool and worktable
- 235-535mm
- Keyword
- Internal Gear shaper
- Warranty of core components
- 1 Year
- Applicable industries
- Building Material Shops Machinery Repair Retail Construction works Energy & Mining
- Category
- Gear Shaping in China
- Subcategory
- Industrial machinery
- Subcategory 2
- Gear cutting machines
- Subcategory 3
- Machine tool equipment
- Listing ID
- 101205693
Description
Y54A Gear shaper is a metal cutting machine tool, which is a gear processing machine tool that uses a gear shaper to process internal and external spur and helical gears and other tooth-shaped parts according to the generating method.
Y54 gear shaper is used for finishing or rough machining of external meshing spur gears, especially for processing internal gears, double gears and multi-stage gears. When installing helical guide rails on the cutter shaft and installing tools with helical angles Helical gears can be machined.
The principle of gear shaping is that two gears mesh without clearance, one is the gear shaping cutter, and the other is the processed gear. Gear shaping is carried out according to the hobbing method. If the gear shaper and the gear to be processed are not rotated in a certain proportion, the workpiece will be cut more or less, resulting in errors.
