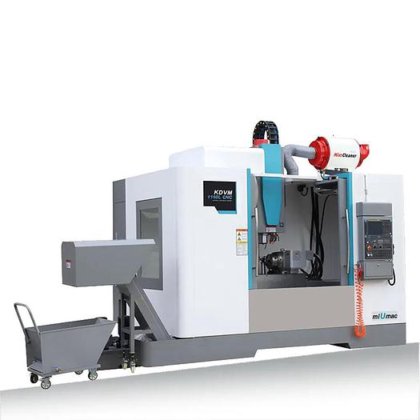

miUmac KAIDA VMC 3 axis 1100/600/600 Vertical Machining Center cnc milling machine tools 1200x600 table size in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- No. of spindles
- Single
- Dimension(l*w*h)
- 4600*2490*2760mm
- Weight (t)
- 6 T
- Table size (mm)
- 1200x600
- Cnc control system
- FANUC MITSUBISHI Siemens DELEM
- Number of axes
- 3
- Table travel (x) (mm)
- 1160 mm
- Table travel (y) (mm)
- 600 mm
- Table travel (z) (mm)
- 600 mm
- Positioning accuracy (mm)
- 0.008
- Repeatability (x/y/z) (mm)
- 0.006
- Spindle motor power(kw)
- 11kw
- Max. table load(kg)
- 800 kg
- Min. time of tool change(s)
- 2
- Tool magazine capacity
- 24
- Key selling points
- Easy to Operate
- Place of origin
- Zhejiang China
- Voltage
- optional
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Weight
- 6400kg
- Power(w)
- 11/15KW
- Certification
- CE ISO
- Applicable industries
- Machinery Repair Shops Manufacturing Plant Home Use Construction works Energy & Mining
- Warranty of core components
- 1 Year
- Core components
- PLC
- Category
- Machining Centers in China
- Subcategory
- Machining centre
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Subcategory 4
- Machining centre & parts
- Listing ID
- 101209914
Description
FEATURES AT A GLANCE
Product Features
1. Aseismatic capability, high strength and good quality cast iron.
2. Wide base and Y-type column structure.
3. Taiwan high precision linear guide ways.
4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
5. Adopting Japan NSK special screws angular contact ball bearing group.
Right elevation
Left elevation
Back elevation
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
Taiwan spindle BT40/BT50
Taiwan 24T arm type auto tool changer

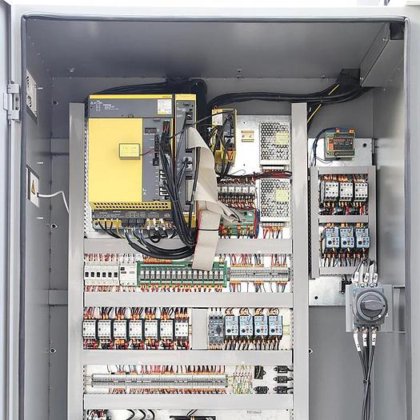

Schneider or Siemens main electrical components.
Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws.
Auto chip conveyor.
FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.
Taiwan 4th or 5th axes rotary table is optional.
Tools and workpiece measuring instrument are optional.
30 bar high pressure filtering system and oil cooler are optional.
