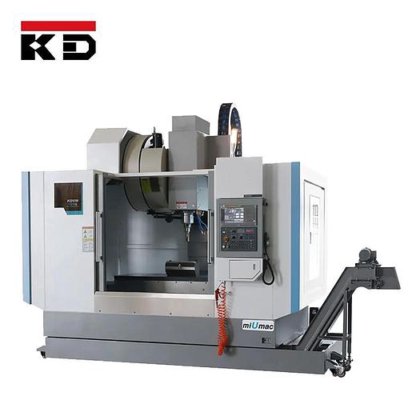

miUmac 8000rpm cnc vertical Milling Machine 3/4 axis BT40 Spindle Machining Center with Machine Tools in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Spindle taper
- BT40
- No. of spindles
- Single
- Dimension(l*w*h)
- 3850x2770x2835 (w/o chip conveyor)
- Weight (t)
- 9.5
- Table size (mm)
- 1500x700
- Cnc control system
- SIEMENS GSK FANUC (optional)
- Table travel (x) (mm)
- 1300
- Table travel (y) (mm)
- 700
- Table travel (z) (mm)
- 700
- Positioning accuracy (mm)
- 0.006
- Repeatability (x/y/z) (mm)
- 0.008
- Range of spindle speed(r.p.m)
- 0 - 8000 r.p.m
- Max. table load(kg)
- 1000 kg
- Min. time of tool change(s)
- 2
- Tool magazine capacity
- 24
- Key selling points
- High-accuracy
- Place of origin
- Zhejiang China
- Voltage
- optional
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Machining capacity
- Medium Duty
- Rapid feed speed(mm/min)
- 0 - 20000 mm/min
- Power(w)
- 11/15KW
- Controlling mode
- Cnc Control
- Product type
- Cnc 3/4/5 Axis Machine
- Spindle speed
- 8000/10000/12000rpm
- Control system
- SIEMENS GSK FANUC (optional)
- Cnc controller
- Fanuc Siemens Syntec KND GSK
- Machine type
- CNC Vertical Machining Center
- Warranty of core components
- 1 Year
- Number of axes
- 3 / 4 / 5
- Spindle motor power(kw)
- 11/15
- Category
- Machining Centers in China
- Subcategory
- Machining centre
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Subcategory 4
- Machining centre & parts
- Listing ID
- 101210155
Description
FEATURES AT A GLANCE
Product Features
1. Aseismatic capability, high strength and good quality cast iron.
2. Wide base and Y-type column structure.
3. Taiwan high precision linear guide ways.
4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
5. Adopting Japan NSK special screws angular contact ball bearing group.
Right elevation
Left elevation
Back elevation
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
Taiwan spindle BT40/BT50

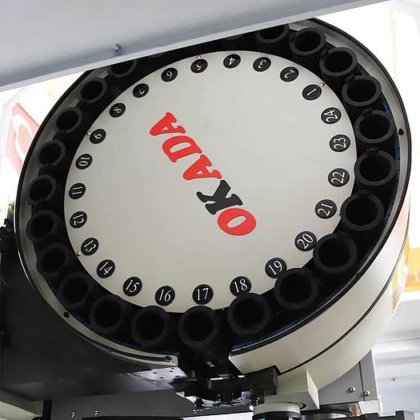

Taiwan 24T arm type auto tool changer

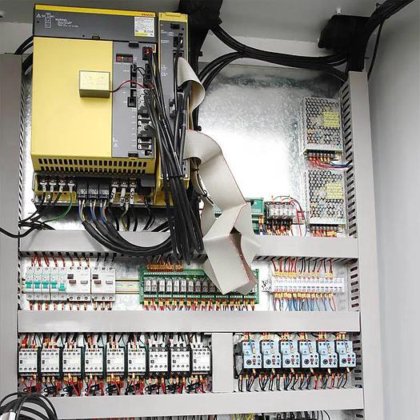

Schneider or Siemens main electrical components.
Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws.
Auto chip conveyor.
FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.
Taiwan 4th or 5th axes rotary table is optional.
Tools and workpiece measuring instrument are optional.
30 bar high pressure filtering system and oil cooler are optional.
