Hans E5 cobot robot and robot arm 6 axis with robot arm controller and teach pendent and onrobot gripper in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Place of origin
- Shanghai China
- Application
- Pick and place welding handling spraying
- Power(w)
- 400W
- Voltage
- DC 48V
- Weight (kg)
- 23
- Video outgoing-inspection
- Provided
- Machinery test report
- Provided
- Core components
- PLC Pressure vessel Gear
- Weight
- 23KG
- Payload
- 5kg
- Reach
- 800mm
- Power
- 180W in typical cycle
- Joint range
- ±360°
- Joint speed
- J1-J4 180°/S J5-J6 200°/S
- Tool speed
- 2m/s
- Repeatability
- ±0.05mm/±0.03mm(under normal conditions)
- Applicable industries
- Garment Shops Manufacturing Plant Machinery Repair Food & Beverage Factory Farms Restaurant Shop Printing
- Warranty of core components
- 1 Year
- Features
- Hand Guiding
- Category
- Industrial Robots in China
- Subcategory
- Industrial machinery
- Subcategory 2
- Collaborative robots
- Listing ID
- 101224550
Description

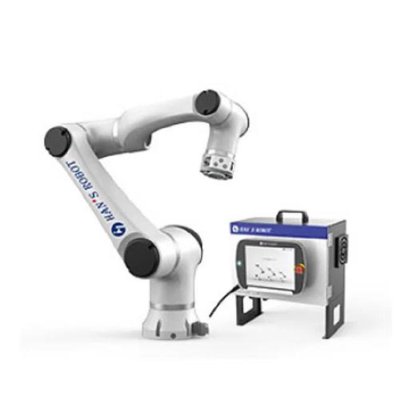

Hans E5 cobot robot and robot arm 6 axis with robot arm controller and teach pendent and onrobot gripper
Product image
Safer work
With Elfin robots, there is no need to pay extra for safe operation the same as traditional robots. The robots have high collaborative performance and can perform a protective stop immediately when they encounter resistance, ensuring the safety among co-worker, workpieces, and production equipment.
More Flexible Deployment
Elfin robots can be mounted at any angle and installed anywhere to minimize the impact on the production lines. Redeployment requires very short time and is very suitable for small batches, customized and short-cycle production, which is the best choice for automation transformation.
Easier Operation
Elfin robots can be easily teached by moving the end of the arm to the desired position or desired trajectory,which is greatly saves the programing time. 10 minutes is absolutely enough for building one simple pick and place program.
Fast, Stable Ether CAT bus communication
The controller and robot joint adopt industrial EtherCAT communication, which enables the system to have excellent control performance and strong an-interference ability.
