drilling core machine coal mine drill hydraulic core drill rig in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Power type
- Diesel
- Place of origin
- Shandong China
- Use
- Coal
- Voltage
- 220V/380V
- Dimension(l*w*h)
- 4000*1900*1800mm
- Weight
- 4300 KG
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Core components
- Pressure vessel Pump
- Key selling points
- Automatic
- Drilling diameter
- 300mm 50mm 75mm 60mm 200mm 450mm HTW-NTW-BTW
- Drilling depth
- Max.500m
- Application
- Rock Core Drilling Rig
- Feature
- High Efficiency
- Keyword
- Hard Rock Drill Hammer
- Engine
- Disel Engine
- Drilling method
- Top Drive Hydraulic Rotary Drilling
- Rated pressure
- 21Mpa
- Maximum torque
- 300-500N.M
- Feeding stroke
- 1900mm
- Drilling angle
- 45-90°
- Applicable industries
- Manufacturing Plant Construction works Energy & Mining
- Warranty of core components
- 1 Year
- Power
- 78KW
- Category
- Compactors in China
- Subcategory
- Mining machinery
- Subcategory 2
- Mine drilling rig
- Subcategory 3
- Energy & mineral equipment
- Subcategory 4
- Construction & building machinery
- Listing ID
- 101365082
Description

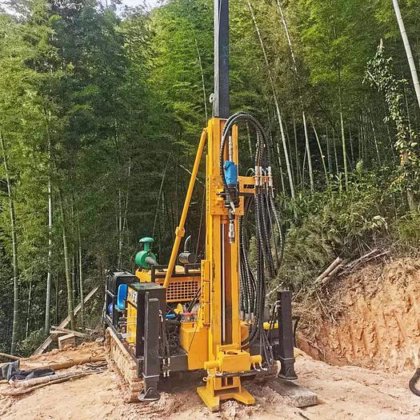

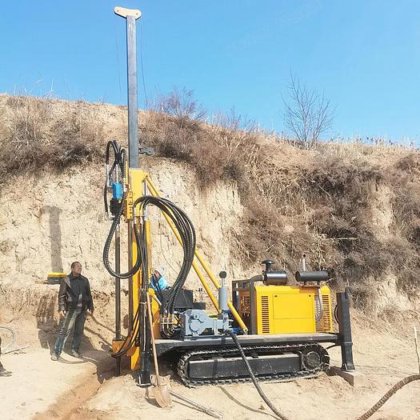

Full hydraulic core exploration drilling rig
Full hydraulic core exploration drilling rig uses and advantages
1. This f
ull hydraulic core exploration drilling rig using f
or prospecting, gold ore, iron ore, coal, lithium ore, rubidium ore, stone ore, etc.
2. It is easy to install, and the rope coring process does not need to lift the drill pipe. The winch is connected to the salvage device, and the coring efficiency is high.The traditional vertical shaft control machine drills and lifts the drill pipe, which has low efficiency and troublesome disassembly and assembly of the tower, which requires large equipment to be lifted and transported, and the cost is high.

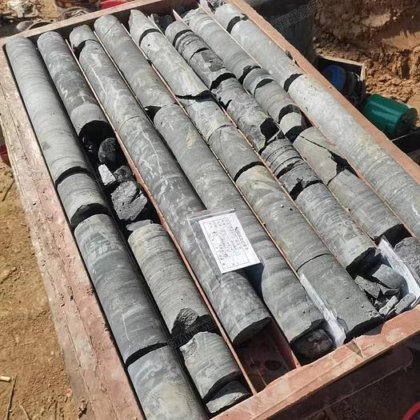

3. Thin-wall drilling tools, the core diameter is 56, and the wall of the drill bit is thin. Traditional drilling rig Core diameter 48 bit wall thickness.
Why choose this drilling rig?
1. Easy to install, you can start drilling in half a day
2.
$27,999 USD
