Automatic Single Column Robot Case Palletizer Machine and Single-Column Robot Palletizer for Drum in Henan, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Application
- Beverage Chemical Machinery & Hardware APPAREL
- Packaging type
- Cartons CANS Bottles Barrel Stand-up Pouch Bags Foil case
- Packaging material
- Plastic paper metal Glass
- Automatic grade
- Automatic
- Driven type
- Electric
- Voltage
- 380v/220v
- Place of origin
- Henan
- Dimension(l*w*h)
- 1100*1000*2600mm
- Key selling points
- High-accuracy
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Core components
- motor PLC Pressure vessel Engine
- Model name
- VPK-LZ50 Single column palletizer
- Stacking speed
- 400-600bags per hour
- Maximum height
- 1800mm
- Applicable industries
- hotels Garment Shops Building Material Machinery Repair Food & Beverage Factory Home Use
- Warranty of core components
- 1 Year
- Weight
- 1800 KG
- Power
- 6kw
- Category
- Palletizers in China
- Subcategory
- Packaging line
- Subcategory 2
- Packaging machines
- Subcategory 3
- Industrial machinery
- Listing ID
- 101436704
Description
VPEKS VPK-LZ50 Automatic single column robot case palletizer machine in produce line and Single Column Robot Palletizer
Single-column robot palletiser made by VPEKS Automation
In the range of robot palletizer of VPEKS, the single-column robot palletizer of VPEKS represents the simplest and most compact model.
The single-column robot palletizer of VPEKS can handle bags containing stable, aerated or powdery products, permitting partial overlapping of the bags in the layer along both the top and sides, offering flexible format changes.
Its extreme simplicity makes it possible to palletize even on pallets sitting directly on the floor.

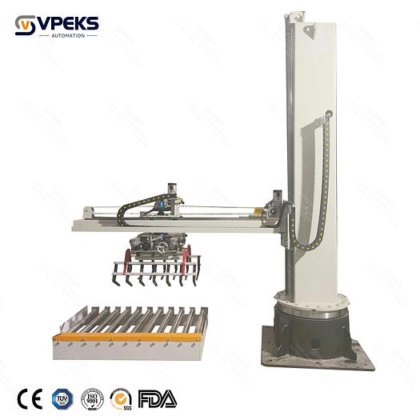

The machine features a sturdy rotating column with a rigid horizontal arm connected to it that can slide vertically along the column. The horizontal arm has a bag pick-up pincer mounted on it that slides along it, rotating around its vertical axis.
Find more
$8,000 USD
