2024 KAAST MACHINE TOOLS DMV 250 VS in Schaumburg, IL, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2024
- Stock number
- 23122
- Table-w
- 10"
- Table-l
- 54"
- Travel-long
- 34"
- Travel-cross
- 30.5"
- Power
- 3 hp
- Rpm
- 2,720 RPM
- Taper
- R8
- Dimensions
- 79x82x72”
- Weight
- 2,860lbs
- X
- 775 mm auto (30.5”)
- Y
- 390 mm (15-3/8”)
- Z
- 390 mm (15-3/8”)
- Drill chuck
- 18 (Ø3-16 mm)
- Category
- Milling Machines in USA
- Subcategory
- Equipment
- Subcategory 2
- Vertical mills
- Subcategory 3
- Vertical machining
- Listing ID
- 101603782
Description

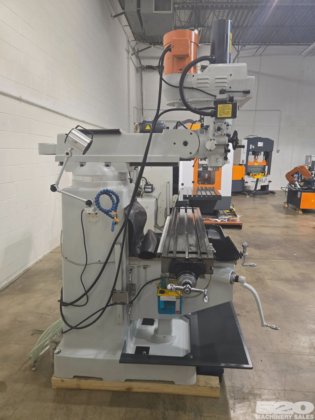

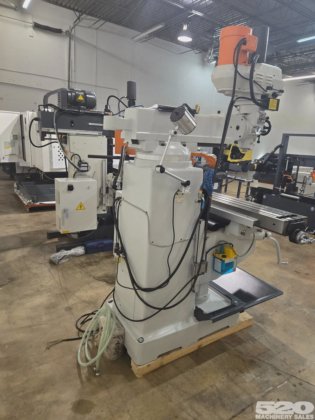

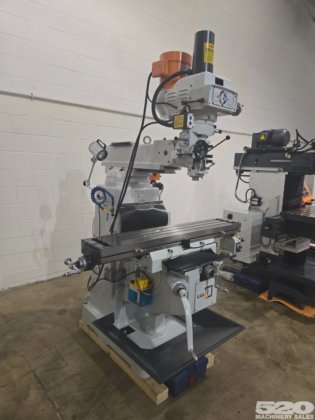

KAAST MACHINE TOOLS DMV 250 VS Vertical Mill, 2024 Showroom with
10x54" Table. Drilling and milling machine for single and small series production featuring a chrome plated quill, high precision spindle hardened and ground with 3 sets of P4 bearings, and automatic spindle switchover. With infinitely variable speed control, the DMV series offers quiet operation with V-belt drive, swivel range left / right ± 45 °, and rotation of the upper arm around the column 360°
Table Dimensions 250x1370 mm (10x54”)
Axis Travel
Spindle Taper R8
Spindle Speed Stepless, 66-2720 rpm
Quill Travel 127 mm (5”)
Head swivel range ±45°
Distance spindle-table 100-506 mm (4-20”)
Power Feed X-axis
Distance Spindle-Column 178-738 mm (7-29")
Motor 2.2 kW (3 Hp)
Dimensions 2011x2087x1840 mm (79x82x72”)
Weight 1300 kg (2,860 lbs)
DMV 235/250 VS Air Power Drawbar (NST#35/R8
3-axis digital readout
Collet chuck with collets (Ø4, 5, 6, 8,
10, 12, 14, 16 mm)
Working area illumination
Centralized lubrication
