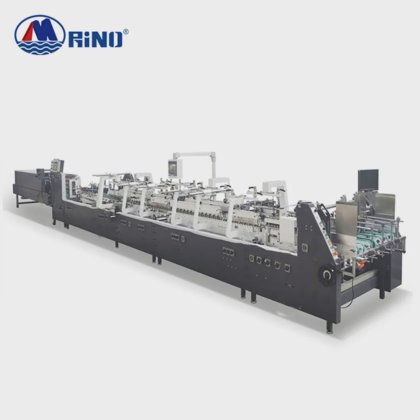

Carton Box Lock Bottom Folding Gluing Machine in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Provided
- Automatic grade
- Automatic Folder Gluer
- Driven type
- Electric
- Packaging
- Film
- Max method
- Automatic Continuous Feeding
- Max mechanical speed
- 300 M/Min
- Weight
- 11.5t
- Glue type
- Cold Glue
- Power consumption
- 30.5kw,380V 50Hz
- Overall dimension
- 19700*1950*1900mm
- Transport package
- Plastic Film Wrapped
- Specification
- HF-GBL1100
- Hs code
- 844130
- Production capacity
- 10 Sets/Month
- Category
- Folders in China
- Subcategory
- Folder gluer
- Subcategory 2
- Box gluing machine
- Subcategory 3
- Packaging & printing
- Subcategory 4
- Machinery for packaging supplies
- Listing ID
- 101632214
Description
Carton Box Lock Bottom Folding Gluing Machine
Characteristics
1.Driving by synchronous belt, ensure smooth and accurate running.
2. Inverter driving, stable and power saving.
3. Use electric adjust, easy operate.
4. Automatic continuous feeding, use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
5. Automatic counting and kicking, quantity can preset.
6. Conveyer pressure adjustable according to the box to ensure best quality.
Main technical parameter
Model
HF-GBL 1100
Suitable material
Card board210gsm-850gsm,E,F,N flute corrugated board
Max method
Automatic continuous feeding
Max mechanical speed
400m/min
Overall dimension
19700*1950*1900mm
Weight
11.5T
Glue type
Cold glue
Power consumption
30.5KW,380V 50HZ
Compressed air
6 bar,10 m³/h,60 L
Inching speed
300 m/min

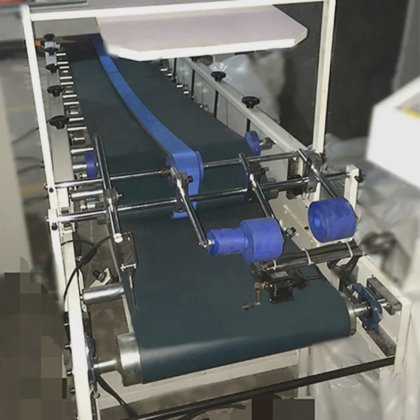

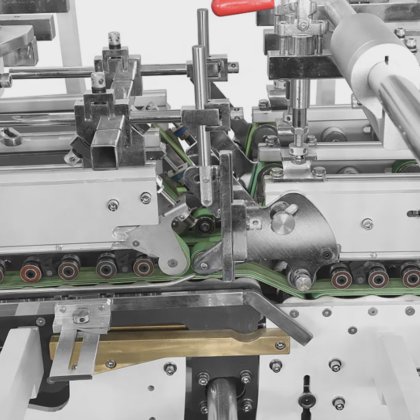

Product details of folder gluer machine

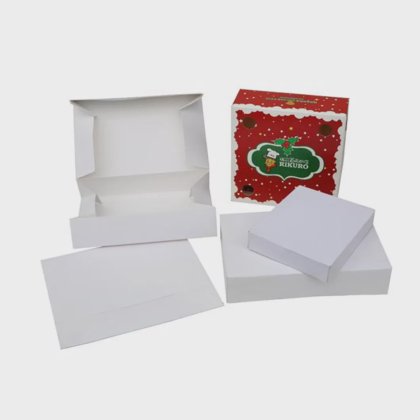

Finshed Boxes
FAQ
1.
Services offered by seller
This seller offers new machines
This seller offers transport & logistics
$4,000 USD
