Agilent Agilent 8564EC in Murrieta, CA, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Frequency range
- 9 kHz - 40 GHz
- Installed options
- 007
- Mpn
- 8564EC
- Category
- Signal Analyzers in USA
- Subcategory
- Signal & spectrum analyzers
- Subcategory 2
- Analyzers & data acquisition
- Subcategory 3
- Test, measurement & inspection
- Listing ID
- 101779477
Description
Agilent 8564EC Spectrum Analyzer 9 kHz - 40 GHz
Fresh Calibration included
Calibrated 2/25 valid certificate until 2027
*YTO and power supply recently rebuilt*
Full alignment with adjustment software performed
Option 007
007= Fast 0 span sweeps (standard on EC models)
We can add these options for additional cost
001= 2nd IF output
005= Alt sweep rear panel output
006= extends low frequency range to 30 hz
008= Signal ID for external mixing
The 8564ec will come with Mass Memory Module including phase noise measurement application
+ the front panel cover
This Agilent 8564EC Spectrum Analyzer has been fully refurbished, tested, and calibrated to ensure accurate and reliable performance. With a frequency range of 9 kHz to 40 GHz, it is well-suited for RF and microwave signal analysis in lab, field, and R&D applications.
Physical condition is good

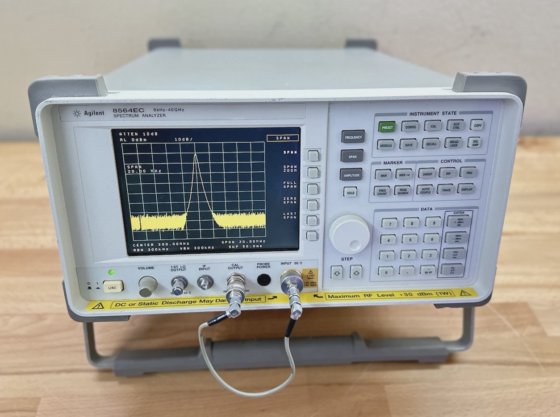

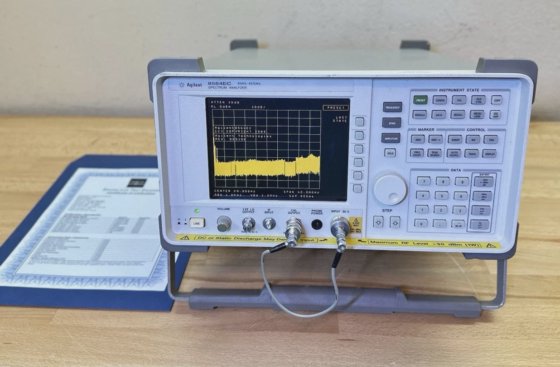

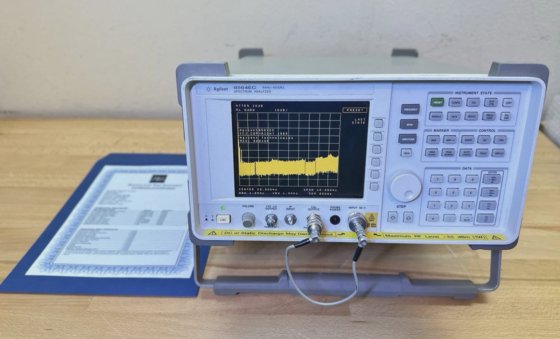

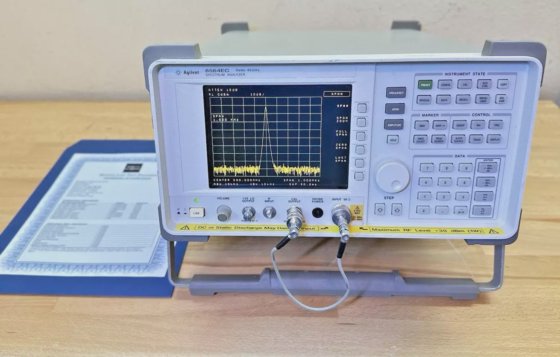

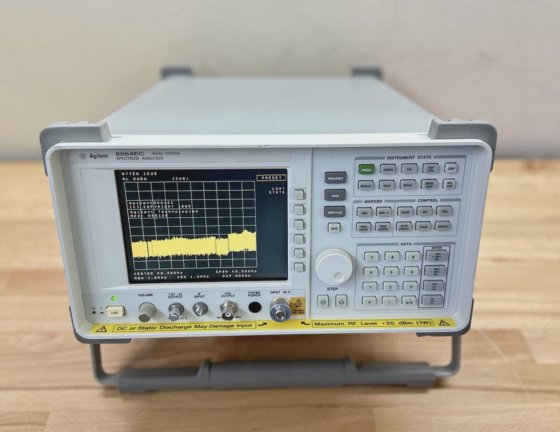

Photos are of the actual unit.
$10,500 USD
