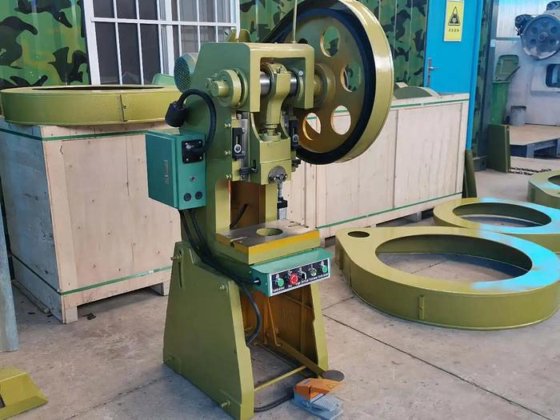

10T small punching machine mechanical power press in Wuhu, Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Cnc or not
- Normal
- Machine type
- Punching Machine
- Slide stroke (mm)
- 50 mm
- Power source
- Mechanical
- Place of origin
- Anhui China
- Voltage
- 220V/380V/Customized
- Dimension(l*w*h)
- 600x530x1500 mm
- Motor power (kw)
- 1.5
- Weight (t)
- 0.38
- Key selling points
- Competitive Price
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Core components
- Bearing Pump Gear motor Gearbox PLC Pressure vessel Engine
- Nominal stroke
- 2mm
- Slide stroke
- 50mm
- Stroke times
- 140 times/minute
- Depth of throat
- 130mm
- Motor power
- 1.5kw
- Die height
- 130mm
- Die-filling diesetheightadjustment
- 40mm
- Nominal force (kn)
- 100
- Applicable industries
- hotels Garment Shops Building Material Manufacturing Plant Machinery Repair Food & Beverage Factory Farms Restaurant Home Use Retail Shop Printing Construction works Energy Mining Advertising Company
- Warranty of core components
- 2 years
- Category
- Punch Machines in China
- Subcategory
- Punching machines
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 101809071
Description
10T small punching machine mechanical power press
Machine Introduction
◆
Mechanical punching machine, also known as mechanical stamping machine. It uses the compressed air provided by the compressed air pump to enter the cylinder through the solenoid valve, drive the piston to the spindle to make the spindle move downward, and that creates momentum, and then the workpiece can be deformed in the die to achieve the purpose of processing.
Working Principle of Mechanical Punch Machine
Products or parts produced by punch or hydraulic machine tools for mechanical punching machines are called stamping parts. Basic requirements: stamping power, male die, mother die and raw materials of products (usually metal sheet or wire). The working principle of the punching machine is that the machine tool drives the opening and closing of the male die and the female die under the action of punching power, and the raw materials between them are cut, punched and stretched.
Detailed Images
$1,300 USD
