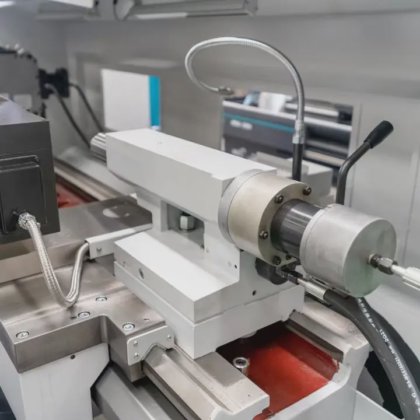

2022 Dmtg Horizontal Cnc Lathe Ck6160 Horizontal Flat Bed Cnc Lathe Precio De Torno Cnc Torno Inteligente in Liaoning, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Year
- 2022
- Max. length of workpiece (mm)
- 500
- Structure
- Flat Bed Lathe
- Machining capacity
- Medium Duty
- Max. weight of workpiece(kg)
- 1000
- Width of bed (mm)
- 400 mm
- Spindle motor power(kw)
- 7.5
- No. of spindles
- Single
- Number of axes
- 2
- Travel (x axis)(mm)
- 280 mm
- Travel (z axis)(mm)
- 685 mm
- Positioning accuracy (mm)
- 0.018
- Repeatability (x/y/z) (mm)
- 0.006
- Place of origin
- Liaoning China
- Dimension(l*w*h)
- 500mm
- Voltage
- 220v/380v
- Cnc control system
- FANUC
- Tool post stations
- 4
- Weight (kg)
- 2200
- Key selling points
- Easy to Operate
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Machine type
- Flat Bed CNC Lathe
- Function
- Turning
- Control system
- SIEMENS GSK FANUC (optional)
- Spindle speed
- 2200rpm
- Turret type
- 4 Station Tool Post
- X/z axis travel
- 280/685
- Motor power
- 7.5kw
- Max.swing over bed
- 500mm
- Spindle bore(mm)
- 82
- Toolpost brand
- JORI
- Applicable industries
- Building Material Shops Machinery Repair Manufacturing Plant Construction works
- Warranty of core components
- 1 Year
- Core components
- Bearing motor Engine
- Max. spindle speed (r.p.m)
- 2200 r.p.m
- Max. turned length (mm)
- 2000
- Spindle bore
- 82mm
- Max. swing diameter (mm)
- 500
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 102215630
Description
Chinese CNC Lathe Machine Supplier CKE6150Z Dalian DMTG Flat Bed Horizontal Torno CNC Lathe Machine Price
2022
Exhibition site
1. Is your company a factory or trading company ?
We are factory .
2. What is your payment terms ?
If with stock ,100% payment in advance first,because the machine can ready to ship.
if without stock ,normal 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
3. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
4. What is the warranty period ?
The machine is warranted for a period of 13 months after B/L date or 12 months from the date of ship arrival, whichever is earlier, against faulty workmanship and defective material. In this situation, parts will be supplied for free in replacement of defective parts against detailed inspection report after checkup and ratification.
5. Can you send the service engineer to our company ?
When the machine arrive the destination, we timely send service engineers to install machine according to buyer's schedule, the buyer shall bear all expenses.
$14,200 USD
