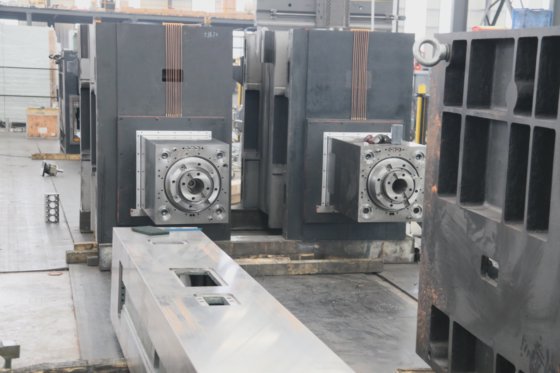

Horizontal CNC Boring and Milling Machine CNC Metal Processing Boring Machine Price in Liaoning, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Table size (mm)
- 2500*2500mm
- Table travel (x) (mm)
- 3000 mm
- Table travel (y) (mm)
- 2500 mm
- Table travel (z) (mm)
- 2500 mm
- Number of axes
- 5
- Max. table load(kg)
- 20000kg
- Travel (w-axis) (mm)
- 1500 mm
- Video outgoing-inspection
- Provided
- Machinery test report
- Provided
- Core components
- motor
- Positioning accuracy (x axis) mm
- 0.015
- Positioning accuracy (y axis) mm
- 0.015
- Positioning accuracy (z axis) mm
- 0.015
- No. of spindles
- Single
- Range of spindle speed(r.p.m)
- 6000 r.p.m
- Spindle motor power(kw)
- 45kw
- Cnc or not
- CNC
- Production capacity
- 100
- Place of origin
- Shandong China
- Voltage
- 380V
- Dimension(l*w*h)
- 3800*5800*59000
- Weight (t)
- 20 T
- Key selling points
- Multifunctional
- Application
- Metal Machining Center
- Product type
- CNC Boring And Milling Machine
- Keywords
- Horizontal Boring And Milling Machine
- Processing
- Metal Milling And Boring Machine
- Precision
- High Precision Machining Center
- Machine type
- CNC Boring And Milling Machine
- Function
- Machining Metal
- Features
- High Precision Heavy Duty
- Warranty of core components
- 1 Year
- Applicable industries
- Other
- Category
- Milling Machines in China
- Subcategory
- Boring machines
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 102215687
Description
This series of machine tools are equipped with square rams, excellent performance and a wide range of processing technologies. A variety of special accessory milling heads can be selected, and drilling, reaming, boring, grooving and plane milling of medium and large-sized parts can be completed in one clamping.
The machine bed is T-shaped, with high rigidity and multiple supports. Compound guide rails, each with a load-relief device, and heavy-duty roller linear guideways can be used.
Fully enclosed spindle box. Y-axis nut rotation (for strokes exceeding 2000mm). Each feed axis is driven by a high-precision preloaded double-nut ball screw pair. The main transmission box and the square slide are fed synchronously, with high speed, low noise and high torque characteristics. Imported wire rope counterweight balance, advanced and unique balance suspension point. Double-layer column design.
The bed column guide rails are fully ground.
The square slide is fully covered on all four sides, with its own compensation mechanism.
The rotary table is a large rotary support. The slewing gear ring is a ground large diameter gear ring.
The slewing brake is a hydraulic brake.
The slewing transmission is a double-gear driven gear ring with a backlash elimination mechanism. The backlash elimination mechanism can be selected with dual motors and dual gears, or single motor and dual gears.
Can achieve 360-degree arbitrary angle indexing.
Can be equipped with coolant through spindle and high-pressure unit.
Can be equipped with a tool magazine to achieve automatic tool change function.
Can be equipped with automatic grabbing and automatic indexing accessory heads.
$100,000 USD
