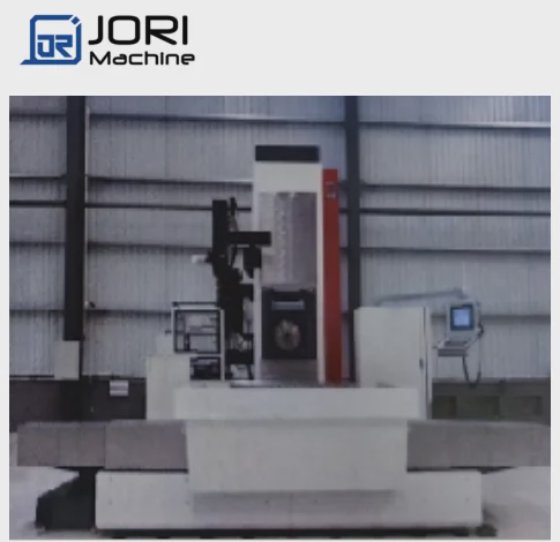

CNC Horizontal Boring Mill CNC Boring Machine Rotary Table For Heavy Metal Processing in Liaoning, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Spindle taper
- BT40 BT50
- No. of spindles
- Single
- Weight (t)
- 35 KG
- Table size (mm)
- 1000*1250 1250*1400 1400*1400 1400*1600 1600*1800 1800*2000 2000*2000
- Cnc control system
- Siemens
- Table travel (x) (mm)
- 1400-2000 1800-2000
- Table travel (y) (mm)
- 1400-1800 1600-2000
- Table travel (z) (mm)
- 1400 1500
- Positioning accuracy (mm)
- 0.015
- Repeatability (x/y/z) (mm)
- 0.008
- Range of spindle speed(r.p.m)
- 0 - 10000 r.p.m
- Max. table load(kg)
- 20000 kg
- Min. time of tool change(s)
- 2
- Tool magazine capacity
- 24
- Key selling points
- Automatic High Safety Level High-accuracy Easy to Operate
- Place of origin
- China
- Voltage
- 380V/220V
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Machining capacity
- Heavy Duty
- Rapid feed speed(mm/min)
- 0 - 10000 mm/min
- Application
- Heavy Metal Processing
- Product type
- CNC Horizontal Boring and Milling Machine
- Keywords
- CNC Horizontal Boring and Milling Machine
- Processing
- Metal Milling And Boring Machine
- Precision
- High Precision Machining Center
- Machine type
- CNC Horizontal Boring and Milling Machine
- Function
- Machining Metal
- Features
- High Precision Heavy Duty
- Warranty of core components
- 1 Year
- Feed speed(mm/min)
- 0 - 10000 mm/min
- Spindle bore(mm)
- 130 160 200 260
- Cutting torque
- 2600 N.m
- Number of axes
- 4 / 5
- Spindle motor power(kw)
- 30kw
- Category
- Boring Mills in China
- Subcategory
- Machining centre
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Subcategory 4
- Machining centre & parts
- Listing ID
- 102216041
Description
This machine is divided into two types according to the different spindle box structures, one is the basic type A (with fixed face plate) and the other is type B (without face plate).
D2 Capacity: China-Israel type
Type A-with fixed face plate Customer base: high-voltage switch, pump valve, petroleum machinery, chemical machinery.
Type B-without fixed face plate Customer base: engineering machinery, auto parts, aerospace, molds, motors, etc.
Table layout, integral bed, fixed column, side-mounted spindle box structure, and the lower carriage guide rail is a cross-type coordinate structure.
The guide rail can be selected as a composite guide rail or a heavy-duty roller linear guide rail, and the composite guide rail is fully ground.
The bed has added an integral auxiliary guide rail to expand the lateral travel of the machine tool while ensuring the good rigidity of the bed.
Type A has a fixed flat disk, and the spindle shaft system adopts a three-layer structure, namely the face plate spindle, hollow spindle and boring spindle. The boring spindle is made of high-quality nitrided steel 38CrMOAIA, and the hollow spindle is made of high-quality alloy steel. The shaft system structure has good rigidity and high precision.
The spindle has stepless speed regulation of high and low gears, and the spindle has a precise stop function. Each main feed axis uses an independent AC servo motor to drive the ball screw.
Optional automatic tool magazine system to improve the automation level of the machine tool.
Type B can be equipped with accessories such as milling head or boring spindle sleeve to further improve the processing efficiency of the machine tool.
The bed column guide rails are fully ground.
The rotary table is a large rotary support.
The rotary ring gear is a ground large diameter ring gear.
The rotary brake is a hydraulic brake.
The rotary transmission is a double-gear drive ring gear with an anti-backlash mechanism. The anti-backlash mechanism can be selected with double motors and double gears, or single motors and double gears.
It can achieve 360-degree arbitrary angle indexing.
It can be equipped with high-pressure central water outlet.
Type B can be equipped with a tool magazine to realize automatic tool change function.
Type B can be equipped with an extended right-angle milling head.
Type B can be equipped with a spindle support.
$100,000 USD
