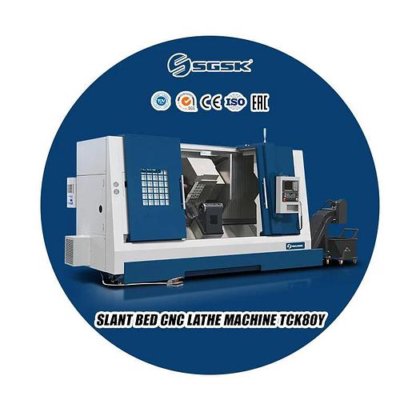

cnc lathe parts TCK80Y cnc lathe live tooling cnc lathe tools in Zaozhuang, Shandong, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Max. length of workpiece (mm)
- 1000
- Structure
- Slant Bed Lathe
- Machining capacity
- Light Duty
- Max. weight of workpiece(kg)
- 400
- Width of bed (mm)
- 400 mm
- No. of spindles
- Single
- Number of axes
- 2
- Travel (x axis)(mm)
- 250
- Travel (z axis)(mm)
- 1020
- Positioning accuracy (mm)
- ±0.005
- Repeatability (x/y/z) (mm)
- ±0.003
- Place of origin
- Shandong China
- Dimension(l*w*h)
- 2800*1860*1850
- Voltage
- 220V/380V/410V
- Cnc control system
- GSK 980TC3
- Tool post stations
- 12 8
- Weight (kg)
- 6000
- Key selling points
- Competitive Price
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Range of spindle speed(r.p.m)
- 1 - 3000 r.p.m
- Cutting torque
- 0
- Name
- cnc lathe parts TCK80Y live tooling tools
- Turret type
- 12 Position living Turret
- Precision
- High Precision Machine
- Swing over bed
- 800
- Spindle speed
- 50-3500
- Cnc controller
- SIEMENS.FANUC.GSK
- Motor power
- 18.5/22
- Spindle bore
- 80
- Max. swing diameter (mm)
- 800
- Spindle motor power(kw)
- 18.5
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 102322692
Description
cnc lathe parts TCK80Y cnc lathe live tooling cnc lathe tools
Products Description
Products Parameters
Details Display
45
DEGREE MACHINE STRUCTURE
1.Special structure more stronger
2.
Easy metal chips falling down
SPINDLE UNIT
1.
High speed spindle unite
2.Connected with hydraulic chuck and cylinder
SCREW
1.Famous Nanjing/Taiwan Screw.
Hard Rails
1.X Z axis Adopts
Taiwan Linear rails
High speed , High accuracy
CNC CONTROL SYSTEM
1.Standard:
GSK 988TA
HYDRAULIC CHUCK
Hollow hydraulic chuck
TURRET
1.With
12 position Power turret+C axis +Y axis
Multifunctional
of turning, drilling ,milling and tapping.

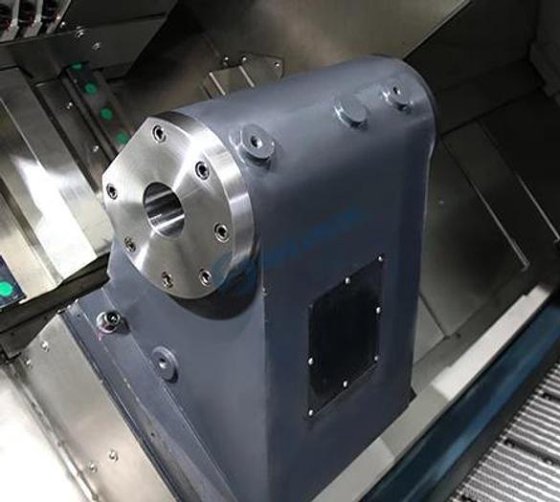

TAILSTOCK
Hydraulic tailstock install
on HIWIN roller linear rails.
HYDRAULIC SYSTEM
Hydraulic system
to give power supply for hydraulic chuck and hydraulic tailstock
LUBRICATION SYSTEM
1.Automatic
centralized lubrication
device .
SCHNEIDER ELECTRICAL COMPONENTS
1. With
Schneider
safety electrical components

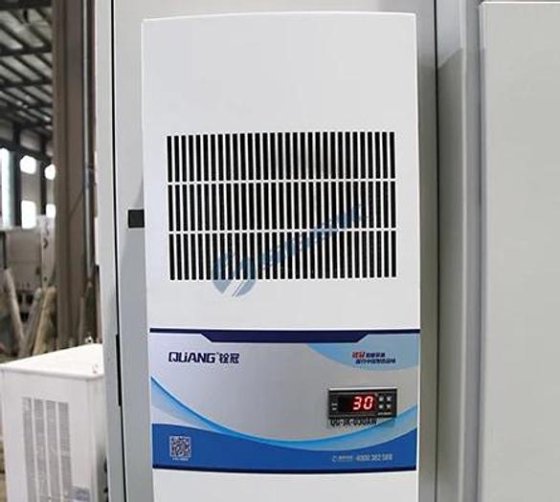

AIR CONDITIONER
Industrial
electrical cabinet
airconditioner.
$74,580 USD
