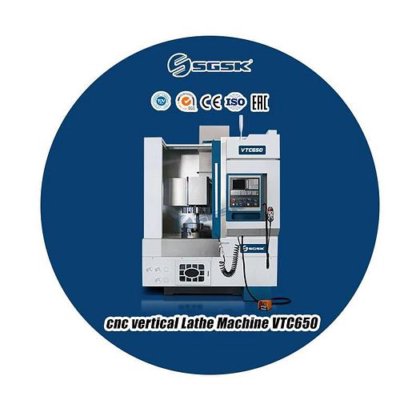

CNC vertical lathe turning machine VTC650 cnc automatic controller for machining metal in Zaozhuang, Shandong, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Max. length of workpiece (mm)
- 650
- Machining capacity
- Heavy Duty
- Max. weight of workpiece(kg)
- 500
- No. of spindles
- Single
- Number of axes
- 2
- Travel (x axis)(mm)
- 325
- Travel (z axis)(mm)
- 550
- Positioning accuracy (mm)
- ±0.002
- Repeatability (x/y/z) (mm)
- ±0.001
- Place of origin
- Shandong China
- Dimension(l*w*h)
- 1.95*1.85*2.65m
- Voltage
- 110V/220V/380V
- Cnc control system
- GSK
- Tool post stations
- 8 4
- Weight (kg)
- 5200
- Key selling points
- Automatic Competitive Price High-accuracy
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Range of spindle speed(r.p.m)
- 50 - 1250 r.p.m
- Cutting torque
- 475
- Cnc or not
- CNC
- Function
- Machining Metal
- Precision
- High Precision Machine
- Product type
- Vertical CNC Machine
- Key word
- Metal CNC Turning Lathe Machine
- Processing type
- Turning CNC Lathe Mahcine
- After warranty service
- 1 Year/12 Months
- Controlling mode
- CNC Automatic Lathe Machine
- Max. swing diameter (mm)
- 650
- Spindle motor power(kw)
- 15kw / 11kw
- Category
- Vertical Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Cnc lathe
- Subcategory 3
- Industrial machinery
- Subcategory 4
- Machine tool equipment
- Listing ID
- 102322796
Description
CNC vertical lathe turning machine VTC650 cnc automatic controller for machining metal
Products Description
Product Paramenters
HYD chuck
Standard with hydraulic chuck, easy for clamping workpiece.
8 station hydraulic turret
Standard with 8 station hydraulic turret from Taiwan.
Taiwan linear rail
Taiwan HWIN brand linear rail high precision and high speed
FUll cover
Beautiful sheet metal cover protectthe operators
CONTROL SYSTEM
Standard: GSK / KND control Optional : Siemens , FANUC, Syntec ect.
Chain type chip conveyor
Improve the operating environment, reduce labor intensity, improve the automation degree of the whole machine
PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components
LUBRICATION SYSTEM
Automatic centralized lubrication device .
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
AIR CONDITIONER
Standard with Industrial electrical cabinet air conditioner.
Cooling the electric box better
