High precision CNC Horizontal Lathe iT35L Slant Bed CNC Lathe cnc turning lathe for metal processing in Shanghai, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Max. length of workpiece (mm)
- 500
- Structure
- Flat Bed Lathe
- Machining capacity
- Medium Duty
- Max. weight of workpiece(kg)
- 300
- Width of bed (mm)
- 35 mm
- No. of spindles
- Single
- Number of axes
- 2
- Travel (x axis)(mm)
- 200 mm
- Travel (z axis)(mm)
- 510 mm
- Positioning accuracy (mm)
- ±0.008
- Repeatability (x/y/z) (mm)
- ±0.004
- Place of origin
- Liaoning China
- Dimension(l*w*h)
- 2550x1675x1760mm
- Voltage
- Customer's Requirement
- Cnc control system
- GSK/FANUC/SIEMENS

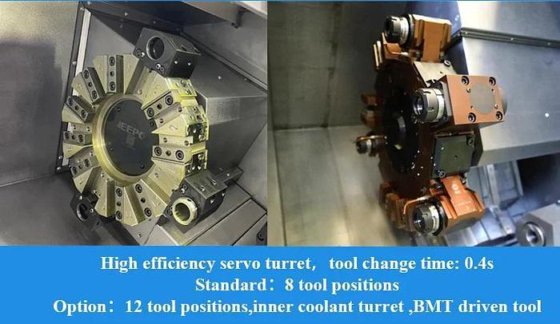

- Tool post stations
- 8
- Weight (kg)
- 3600
- Key selling points
- Competitive Price
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Range of spindle speed(r.p.m)
- 0 - 4500 r.p.m
- Cutting torque
- 35 N.m
- Warranty of core components
- 1 Year
- Max. swing diameter (mm)
- 580
- Spindle motor power(kw)
- 11/15
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 102435109
Description
Product Overview

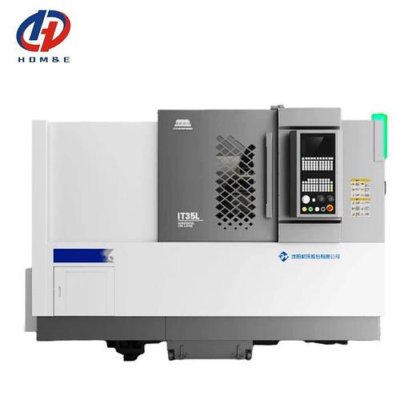

CNC Horizontal Lathe iT35L
We have pleasure in introducing to you our best offer for the IT35 CNC Horizontal Lathe bringing together the requirement for better machining, high precision, easy to operation, low maintenance and special features for today’s modern factory.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Main technical specifications
Main Technical Parameters
Main accuracy
The accuracy of this machine tool is in accordance with GB/T 16462.1-2007 "Inspection Conditions for CNC Lathes and Turning Centers Part 1: Inspection of Geometric Accuracy of Horizontal Machine Tools" and GB/T16462.4-2007 "Inspection Conditions for CNC Lathes and Turning Centers Part 4: Inspection of Positioning Accuracy and Repeated Positioning Accuracy of Linear and Rotary Axis"
Main configuration
Main configuration of machine tool and list of purchased parts
About Us
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China.
$25,800 USD
