SMTCL Auto Loading CNC Lathe Machine IT35L Horizontal Slant Bed CNC Lathe With Fanuc Control in Shanghai, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Max. length of workpiece (mm)
- 500
- Structure
- Slant Bed Lathe
- Machining capacity
- Medium Duty
- Max. weight of workpiece(kg)
- 1000
- No. of spindles
- Single
- Number of axes
- 2
- Travel (x axis)(mm)
- 200 mm
- Travel (z axis)(mm)
- 1025 mm
- Positioning accuracy (mm)
- IT6
- Repeatability (x/y/z) (mm)
- IT6-IT7
- Place of origin
- Liaoning China
- Dimension(l*w*h)
- 2330*1675*1760MM
- Voltage
- 380
- Cnc control system
- GSK
- Tool post stations
- 8
- Weight (kg)
- 3300
- Key selling points
- High-accuracy
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Range of spindle speed(r.p.m)
- 0 - 4000 r.p.m
- Cutting torque
- 70 N.m
- Key word
- Slant Bed CNC Lathe
- Name
- IT35L
- Max. swing over bed
- 580mm
- Spindle speed
- 4000rpm
- Chuck size
- 6"/8"
- X/z axis travel
- 200/510mm
- Tailstock
- Hydraulic Tailstock
- Turret type
- Horizontal 8-station servo Tool Holder
- Control system
- SIEMENS GSK FANUC (optional)
- Warranty of core components
- 1 Year
- Max. swing diameter (mm)
- 580
- Spindle motor power(kw)
- 15kw / 11
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 102435584
Description
SMTCL CNC Lathe IT35L High Torque Spindle Hydraulic Tailstock BMT45 Turret Slant Bed CNC Lathe With Feeder
IT35L series
horizontal CNC lathe is suitable for processing all kinds
of disk and short shaft parts
, can turn the end face and the end groove, the outer circle and the inner hole thread, the groove and the rotary surface and other geometric features. Can meet the automotive, bearing, engineering machinery, non-ferrous metals and other industries for rotary parts of efficient, large quantities, high-precision processing requirements.
Product Features
1、High Rigidity
♦ Finite element analysis to optimize the whole machine structure
♦ The bed is made of high quality castings with reasonable bar layout
♦ Configuration of large span, large torque spindle, improve cutting rigidity
♦ Precision scraping process, improve the connection rigidity
2
、
High efficiency

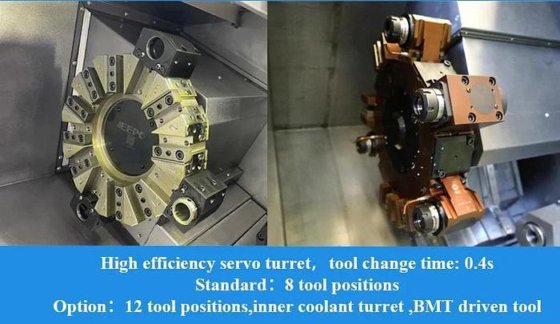

♦ Configuration servo tool holder, short transposition time, high tool change efficiency
$24,800 USD
