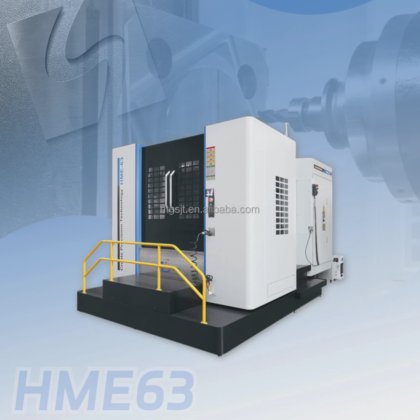

HME63 CNC 4-Axis Metal Processing Horizontal Milling Machines Center in Nantong, Jiangsu, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Spindle taper
- BT50
- No. of spindles
- Single
- Dimension(l*w*h)
- 4720*3430*3350
- Weight (t)
- 13
- Table size (mm)
- 630*630
- Cnc control system
- FANUC
- Table travel (x) (mm)
- 1000
- Table travel (y) (mm)
- 770
- Table travel (z) (mm)
- 900
- Positioning accuracy (mm)
- 0.01
- Repeatability (x/y/z) (mm)
- 0.006
- Range of spindle speed(r.p.m)
- 10 - 6000 r.p.m
- Max. table load(kg)
- 1200 kg
- Min. time of tool change(s)
- 4
- Tool magazine capacity
- 24
- Key selling points
- High Productivity
- Place of origin
- Jiangsu China
- Voltage
- 380V/50Hz
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Machining capacity
- Medium Duty
- Rapid feed speed(mm/min)
- 1 - 24000 mm/min
- Item name
- HME63 CNC 4-Axis Metal Processing Horizontal Milling Machines Center
- Travel for x, y, z axis
- 1000*770*900 mm
- Pallet size ( l x w )
- 630* 630 mm
- Max.load on worktable
- 1200 kg
- Spindle speed
- 6000 r.p.m
- Number of worktables
- 1 or 2
- Division precision
- ± 5" sec
- Repetitive precision
- ± 2" sec
- Spindle drive motor
- FANUC 15/18.5 kw
- Warranty of core components
- 1 Year
- Number of axes
- 4
- Spindle motor power(kw)
- 15/18.5
- Category
- Milling Machines in China
- Subcategory
- Machining centre
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Subcategory 4
- Machining centre & parts
- Listing ID
- 102706482
Description
Product Overview
HME63 CNC 4-Axis Metal Processing Horizontal Milling Machines Center
HME series horizontal machining center, the main body of the machine is inverted T moving column structure, integrated bed, to ensure the rigid switch precision stability of the machine tool, symmetrical frame column layout, to ensure the symmetry of heat and thermal deformation of the machine tool, to provide the machining accuracy of the machine tool, X/Z axis two-way screw row structure, high chip removal efficiency.
FEATURES AT A GLANCE
1. Spindle speed up to 6000rpm, XY axis fast movement up to 20m/min, Z axis 15m/min.
2. Standard spindle oil cooling system minimizes thermal error to ensure machining accuracy.
3. Taiwan high precision spindle, standard speed 6000r/min, with spindle air curtain
protection device.
4. Humanized design of control system, movable operation panel.
Product details
PRODUCT SPECIFICATIONS

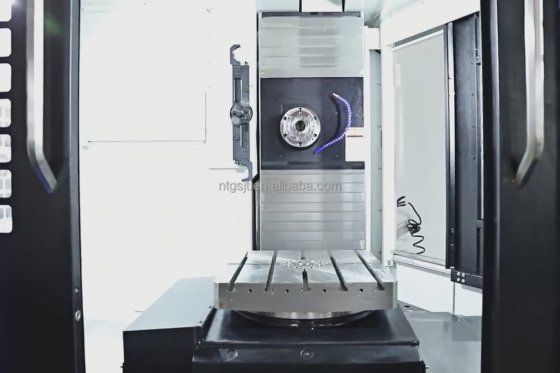

High precision worktable
$90,600 USD
