iHT625 China Slant Bed CNC Lathe Turning Machines For Sale Metal Processing in Nantong, Jiangsu, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Max. length of workpiece (mm)
- 550
- Structure
- Slant Bed Lathe
- Machining capacity
- Medium Duty
- Max. weight of workpiece(kg)
- 120
- Width of bed (mm)
- 45 mm
- Spindle motor power(kw)
- 15/18.5
- No. of spindles
- Single
- Number of axes
- 3
- Travel (x axis)(mm)
- 267 mm
- Travel (z axis)(mm)
- 600 mm
- Positioning accuracy (mm)
- 0.008
- Repeatability (x/y/z) (mm)
- 0.005
- Place of origin
- Jiangsu China
- Dimension(l*w*h)
- 3870*2000*2000 mm
- Voltage
- 220/380V 50HZ
- Cnc control system
- FANUC
- Tool post stations
- 12
- Weight (kg)
- 5200
- Key selling points
- High-accuracy
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Spindle head
- FL170h5
- Maximum spindle speed
- 4000 rpm
- Maximum torque 40% ed
- 300 Nm
- Spindle power / fanuc
- 15/18.5 kw
- Chuck diameter
- 12 mm
- Spindle bore
- 87
- Maximum swing over bed
- 650 mm
- Maximum swing over cross slide
- 400 mm
- Center distance
- 787 mm
- Toolpost brand
- Investa
- Warranty of core components
- 1 Year
- Core components
- Bearing motor Pump Gear PLC Pressure vessel Engine Gearbox
- Max. spindle speed (r.p.m)
- 4000 r.p.m
- Spindle bore(mm)
- 87
- Max. turned length (mm)
- 550
- Applicable industries
- Machinery Repair Shops Manufacturing Plant Retail Construction works Energy & Mining Other Shaft parts processing
- Max. swing diameter (mm)
- 650mm
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 102706637
Description
Product Overview
iHT625 China Slant Bed CNC Lathe Turning Machines For Sale Metal Processing
The overall layout of the machine tool is the overall structure, the base is fixed, and the saddle is moved in the Z direction on the base; The support plate moves in X direction on the saddle, and the skateboard moves in Y direction on the support plate.
iHT series models are mainly used in disk and shaft parts processing, which is the standard model in Guosheng product series.
FEATURES AT A GLANCE
1. Large diameter of spindle bearing ensures high precision of machine tool.
2. High stability, solid cast iron frame, compact design 30/45° tilt bed.
3. Trough cutter head, VDI cutter head, BMT cutter head, electric, servo, power turret to choose from.
4. Hydraulic programmable tail seat, servo tail seat can be matched.
5. All stainless steel inner protection never rusts.

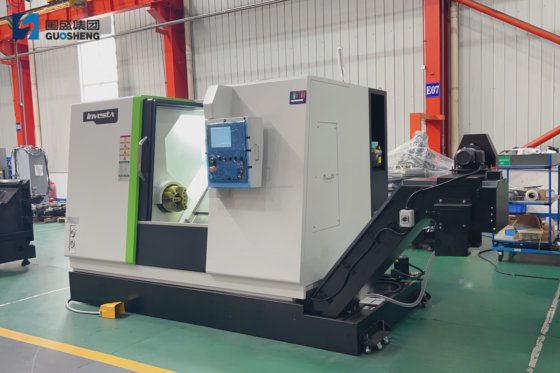

Right elevation

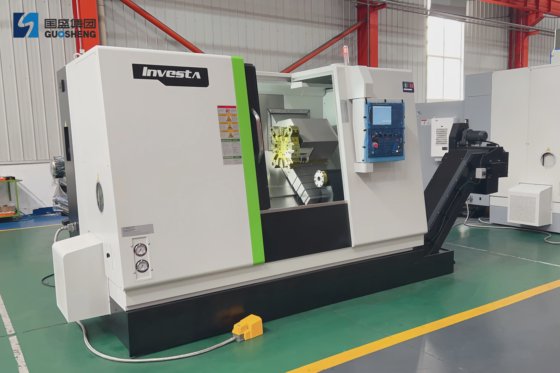

Left elevation

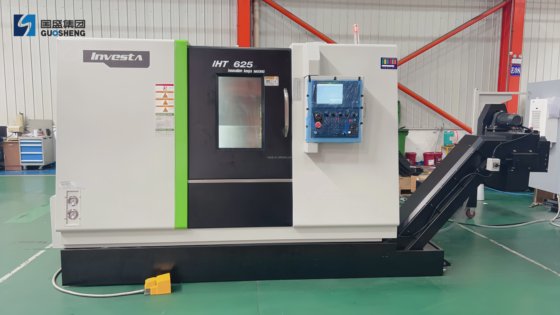

inside elevation
PRODUCT SPECIFICATIONS
Product Specifications
Standard configuration
$46,600 USD
