iHT1531M Factory Price CNC Lathe Turning Machine For Metal Processing in Nantong, Jiangsu, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Max. length of workpiece (mm)
- 1450
- Machining capacity
- Heavy Duty
- Max. weight of workpiece(kg)
- 120
- Width of bed (mm)
- 45
- No. of spindles
- Single
- Number of axes
- 2
- Travel (x axis)(mm)
- 300 mm
- Travel (z axis)(mm)
- 1500 mm
- Positioning accuracy (mm)
- 0.008
- Repeatability (x/y/z) (mm)
- 0.005
- Place of origin
- Jiangsu China
- Dimension(l*w*h)
- 6100*2450*2100
- Voltage
- 220/380V 50HZ
- Cnc control system
- FANUC
- Tool post stations
- 12
- Weight (kg)
- 9500
- Key selling points
- Multifunctional Automatic Competitive Price High-accuracy Energy saving High Productivity Other Rigidity
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Range of spindle speed(r.p.m)
- 10 - 2500 r.p.m
- Cutting torque
- 544 N.m
- Self-centering chuck diameter
- 304 mm
- Front bearing diameter
- 140 mm
- Maximum diameter of the bar
- 90 mm
- Number of tool
- 12 T
- Power tool type
- BMT65
- Maximum clamping force
- 4000 N
- Tool dimension
- 25 Mm
- Power tool speed
- 4000 rpm
- Power tool power
- 2.7 Kw
- Warranty of core components
- 1 Year
- Travel (y axis)(mm)
- 0 mm
- Spindle taper
- FL 220 h5/A2-8
- Rapid feed speed(mm/min)
- 1 - 30000 mm/min
- Feed speed(mm/min)
- 1 - 30000 mm/min
- Min. time of tool change(s)
- 2
- Spindle bore
- 102
- Max. swing diameter (mm)
- 680
- Spindle motor power(kw)
- 15-18.5kw
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 102706789
Description
Product Overview

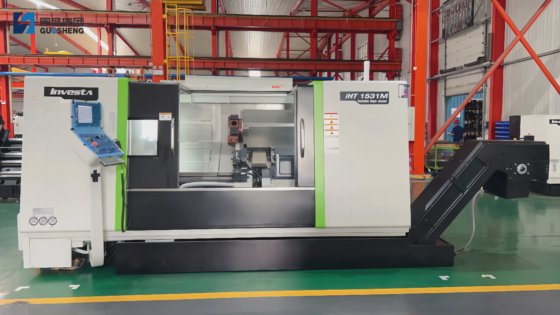

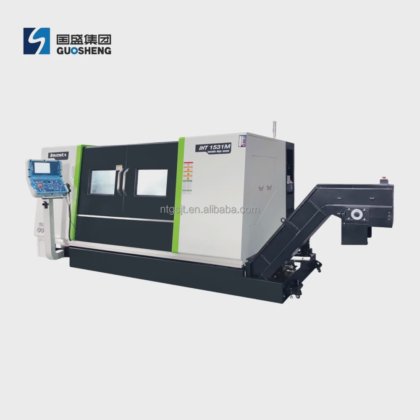

iHT1531M Factory Price CNC Lathe Turning Machine For Metal Processing
iHT series CNC lathes fit the needs of users, adhere to the purpose of high efficiency, high precision and high reliability, equipped with high precision and high rigidity structural components, so that the processing more high-speed, high precision and efficient; And give the characteristics of environmental protection and energy saving.
The maximum turning diameter of the machine tool is 515mm, the maximum length of the workpiece is 1450mm, which can basically meet the various requirements of customers for the machine tool processing specifications, and is widely used in various mechanical processing fields such as automotive, energy, hardware and so on.
FEATURES AT A GLANCE
1. Large diameter of spindle bearing ensures high precision of machine tool.
2. High stability, solid cast iron frame, compact design 30/45° tilt bed.
3.
$81,900 USD
