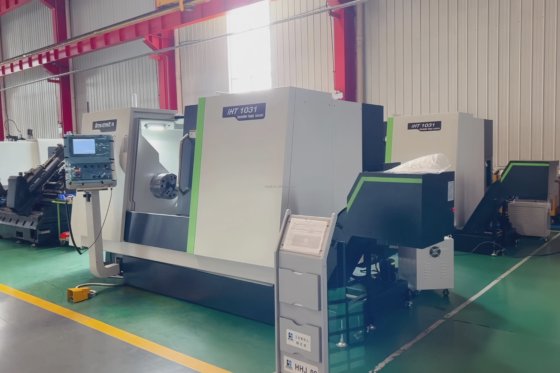

iHT1031M CNC 3Axis y Axis Horizontal Lathe For Metal Processing in Nantong, Jiangsu, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Max. length of workpiece (mm)
- 1031
- Machining capacity
- Medium Duty
- Max. weight of workpiece(kg)
- 120
- Width of bed (mm)
- 45
- No. of spindles
- Single
- Number of axes
- 3
- Travel (x axis)(mm)
- 300 mm
- Travel (z axis)(mm)
- 1050 mm
- Positioning accuracy (mm)
- 0.008
- Repeatability (x/y/z) (mm)
- 0.005
- Place of origin
- Jiangsu China
- Dimension(l*w*h)
- 5120*2100*2100 mm
- Voltage
- 220/380V.50HZ
- Cnc control system
- FANUC
- Tool post stations
- 12
- Weight (kg)
- 7500
- Key selling points
- Automatic High-accuracy Multifunctional High Rigidity Easy to Operate Other
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Range of spindle speed(r.p.m)
- 5 - 2500 r.p.m
- Cutting torque
- 472 N.m
- Application
- Mold auto parts electronics aerospace medical equipment
- Precision
- High Precision Lathe Machine
- Control system
- SIEMENS FANUC (optional)
- Warranty of core components
- 1 Year
- Max. swing diameter (mm)
- 680
- Spindle motor power(kw)
- 15/18.5kw
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 102706812
Description
Product Overview
iHT1031M CNC 3Axis Horizontal Lathe For Metal Processing
Turn-milling composite features:
1, According to customer requirements, automatic modification, to achieve two automatic processing. 2, The machine tool is equipped with mechanical brake device, X, Z, C threes-axis interpolation, can process more complex workpieces.
3, One clamping to complete multiple tasks, reduce tool change time, improve processing efficiency and precision.
FEATURES AT A GLANCE
1. Large diameter of spindle bearing ensures high precision of machine tool.
2. High stability, solid cast iron frame, compact design 30/45° tilt bed.
3. BMT55 power tower
4. Hydraulic programmable tail seat, servo tail seat can be matched.
5. All stainless steel inner protection never rusts.
Product details
PRODUCT SPECIFICATIONS
Product Specifications
Standard configuration
Power tool tower
$73,900 USD
