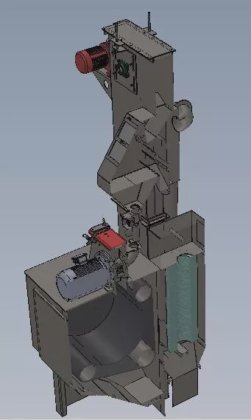

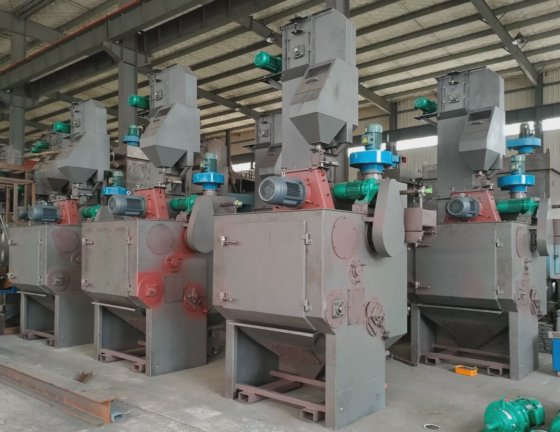

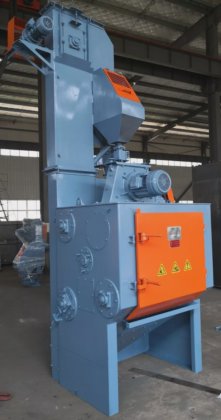

5 Cubic Foot Rubber Belt Tumble Shot Blast Machine "System" with Dust Collector in Mentor, OH, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Year
- 2025
- Finishing process
- Barrel Tumbling
- Machine type
- Centrifugal Finishing Machine
- Power source
- Electric
- Voltage
- 460 V
- Category
- Dust Collectors in USA
- Subcategory
- Finishing machines
- Subcategory 2
- Metalworking equipment
- Subcategory 3
- Cnc, metalworking & manufacturing
- Listing ID
- 102801336
Description
Effective machine volume: 5 cubic feet
Diameter of end disk: 25", and the distance between the barrel heads is 35"

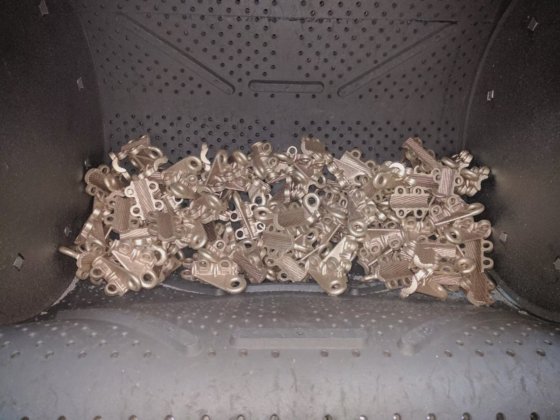

Maximum recommended weight of single work-piece: 22 lbs, with a maximum load capacity of 440 lbs
Blast wheel: 1 - 10HP (7.5Kw) blast wheel with a diameter of 16.535" (420mm). This blast wheel is a simple proven design and it's a workhorse. The blast wheel assembly is dynamically balanced, direct drive with a double disk design (each disk is over 3/4" thick), and straight blades
Footprint: 6' wide x 6' deep x 13' tall
Electric control system: Operator control panel with an operating voltage of 460V, 3 phase, 60 Hz
Abrasive flow rate: 264 lbs/min
Productivity: 1,322-2,645 lbs/hour
Rotating speed of the barrel: 1-3.6 r/min VFD
Media Velocity: 230-246 ft/sec
Media sizes: S70-S660
Media cleaning/recycling system: bucket elevator with air-wash separator
Initial media charge: 500 lbs
Power consumption: 16.9 HP (12.6 Kw) approximately 26A
Dust collector: Cartridge type
