Customization Riveting welding machines Assembly Station For Check Valve in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Place of origin
- Shanghai China
- Automatic grade
- Automatic
- Machinery capacity
- Customization
- Key machines
- plc
- Application
- Assembly and testing
- Keyword
- Workstation
- Certification
- CE ISO
- After sales service provided 1
- Free spare parts Video technical support Online
- After sales service provided 2
- On-site training installation and commissioning
- After warranty service
- Video technical support Online Spare parts
- Local service location
- Brazil India France Spain
- Weight
- 200 KG
- Category
- Riveting Machines in China
- Subcategory
- Assembly line
- Subcategory 2
- Production line
- Subcategory 3
- Industrial machinery
- Listing ID
- 103021923
Description
Product Show

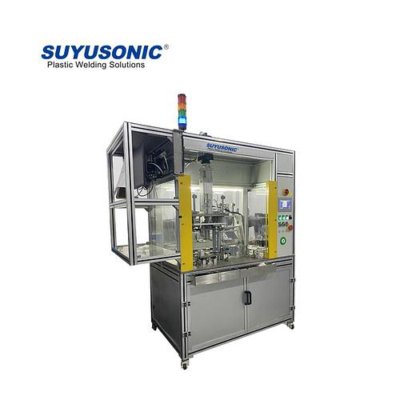

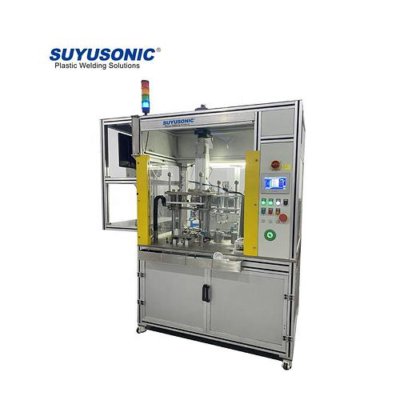

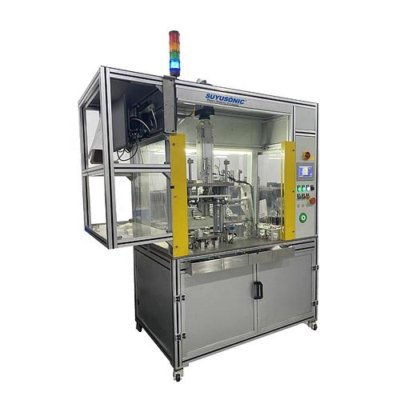

Assembly Station For Check Valve
SUYUSONIC design and build bespoke automated systems tailored to meet our customers’ diversified requirements.
Through riveting, the valve seat, valve core, spring and bracket are riveted into a one-way valve assembly.
assembly requirement：
1) Leak-proof inspection of parts before riveting;
2) Servo press is used for riveting;
3) The riveting process is controlled by the pressure and displacement monitoring module;
4) After riveting, the valve seat and the bracket are not loose, and the edge of the valve seat is not cracked, scratched, etc.;
5) The valve function is tested by the flow, and the opening pressure requirement: 0.2±0.08bar;
6) The two valve seats need to be identified corresponding to two different valves.
plastic support
Coil spring
D
isc plug
Valve seat
Our company
SUYUSONIC
Founded in 2005, Shanghai Suyu Electronic Co., Ltd.
$69,999 USD
