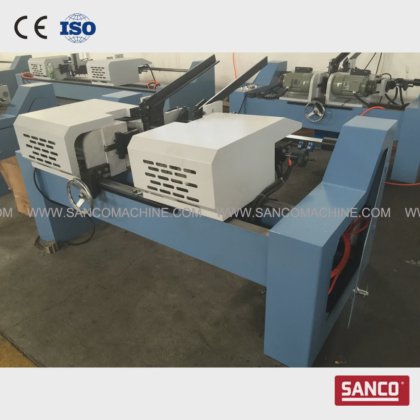

Double End Tube Chamfering Machine for Tube and Bar in Deyang, Sichuan, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Place of origin
- Jiangsu China
- Function
- Out angle inside and surface of tube end
- Automatic grade
- Automatic
- Loader
- Automatic
- Processing length
- Customized
- Raw material
- Steel
- Controlling mode
- PLC
- Capacity
- OD3.2- 52
- Category
- Gear Finishing in China
- Subcategory
- Chamfering machine
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 103032262
Description
to know more about us.
DJ-80P-II double end chamfering machine is controlled by pneumatic, it can finish two ends of pipe / bar one time. Feeding / retracting and clamping by pneumatic, auto unloading. It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results. Changing sizes of cut are conveniently made by simply adjusting and changing cutterhead and clamp. With Taiwan core tech since 1989.
DJ-80P-II
P Pneumatic type
II Double head
Capacity Pipe Φ10- 80 mm
Bar Φ6 - 80 mm
Pipe length customized
Cutterhead Φ20 - 80 mm (standard) or Φ9 - 18 (Option)
Motor 2.2 Kw, 4 pieces
Air Pressure 6-9 kg/cm2, 60 ml/min, 0.6-0.9 Mpa
Automatic lubrication system
Pipe material: steel, iron, stainless steel, aluminum, bronze,
non-ferrous metal, plastic and graphite fiber ...
Round pipe and bar
CE, ISO90001 marked
Options
Cutterhead Φ3.2 - 12 mm is avaible
Auto loading
