CNC 4/5 Axis Milling Machine for Heavy Cutting Metal Processing in Hebei, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Video Technical Support, Online Support
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Linear Control
- Control method
- Semi-Closed Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.04~0.05(mm)
- Performance classification
- High-End CNC Machine Tools
- Certification
- CE, ISO 9001
- Product name
- Vertical Machining Center
- Keywords
- Vmc
- X/y/z axis travel
- 800/550/550mm
- Distance(nose to workbench)
- 120-670mm
- Max. spindle speed
- 8000rpm
- Worktable size
- 1000*550mm
- Function
- Machining Metal
- Movement speed of x/y/ze
- 48/48/48 M/Min
- Motor power of spindle
- 11/15kw
- Taper of spindle
- Bt40
- Transmission of spindle
- Belt Type
- Motor power of x/y/z
- 15/15/28nm
- Max.capacity of workbench
- 600kg
- Measurement(l*w*h)
- 2600*2300*2650mm
- Weight
- 5500kg
- Transport package
- Exporting Case
- Specification
- 2600*2300*2650mm
- Hs code
- 845819000
- Production capacity
- 600sets/Per Year
- Category
- Milling Machines in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103109872
Description
Product Description

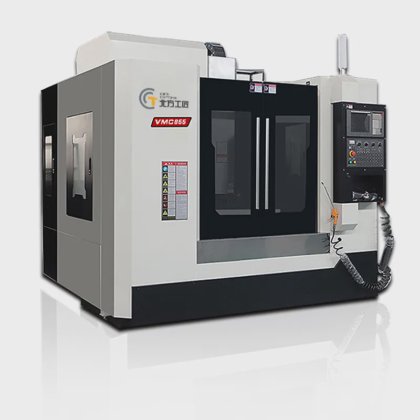

What is CNC Vertical Machine Center?
Vertical Machining Center (VMC) is a machining center in which the spindle axis and the rectangular worktable are set vertically, which is suitable for processing workpieces with high accuracy and precision, even with multiple procedures and complex shapes.
What is CNC vertical machining center? CNC vertical machining center is a type of Computer Numerical Control VMC that has vertically oriented spindles that approach the workpiece mounted on a worktable from above and equipped with a tool magazine system and automatic tool changer.
What is VMC in Machining?
VMC machining refers to machining operations that utilize vertical machining centers (VMCs), which, as the name suggests, have vertically oriented machine tools. These machines are primarily utilized to turn raw blocks of metal, such as aluminum or steel, into machined components.
Product Parameters
Project
Unit
Specification
The X/Y/Z Axis Travel
mm
$32,990 USD
