High-Efficiency Fine Sand Washing Recycling Dewatering Screen Machine for Mining Construction Use in Henan, China

Applications scope: sand and gravel plants, mineral processing plants, hydropower stations, Commercial mixing station,etc.
Our Advantages
1.Not easy to blocking material
The vibrating screen adopts wear-resistant polyurethane screen, which has a longer service life than other types of screens,and it is not easy to block the material.
2.High purification recovery rate
It can recycle 85% of the fine particles above 0.2mm in the total discharge, and the whole machine has a large capacity to treat sludge, and has technical advantages that other equipment does not have.
3.Low cleaning costs
Effectively recycle fine particles, reduce the waste rate, and the finished fine materials can be directly transported to the supply market, reducing the workload of the sedimentation tank and reducing the cleaning cost of the sedimentation tank.
4.Long service life
The cyclone is lined with polyurethane, high-quality wear-resistant and wearing parts, which can effectively improve the service life of the whole device, and can successfully complete tailings concentration and liquid purification.
Product Parameters
Model
Pump power(kw)
Sieve power(kw)
Capacity(m³/h)
HX250
7.5-11
0.75×2
50-80
HX300
11-15
0.75×2
80-100
HX350
18.5-22
0.75×2
100-120
HX500
18.5-22
1.1×2
120-150
HX600
22-30
1.1×2
150-200
HX700
37-44
2.2×2
200-250
HX1000
60
3×2
250-300
Working principle
The pump sends the sand and water mixture to cyclone, the fine sand with eccentricity is sent to vibrating screen. The fine sand and water are effectively separated after dehydration, and little fine sand and mud go back to washing trough.
When the liquid surface of the washing trough is high, the fine sand discharges from output opening. The linear vibrating screen can recover material with concentration 70%-85%, and fineness adjustable is achieved by changing pump rotation speed, changing mortar concentration, and adjusting overflow water yield.

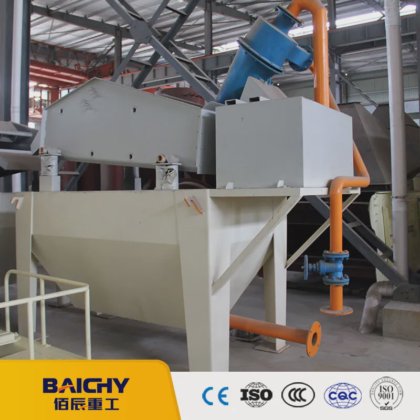

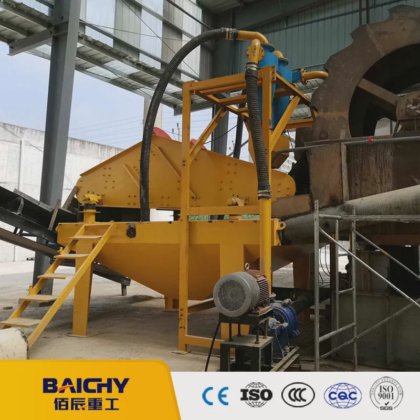

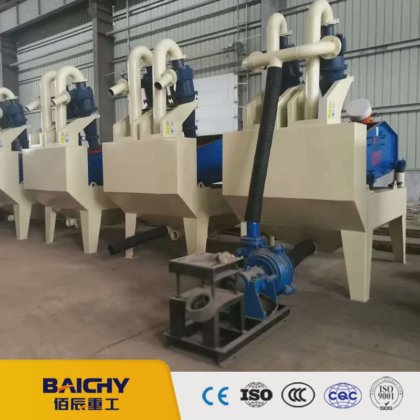

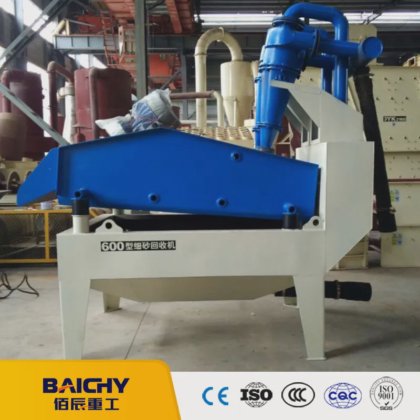

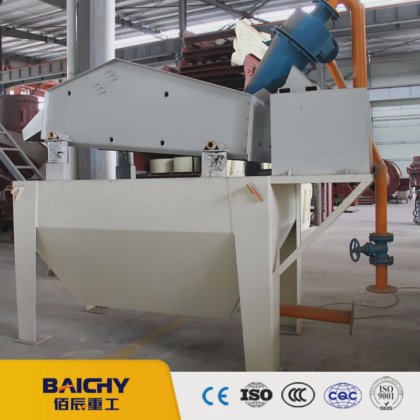

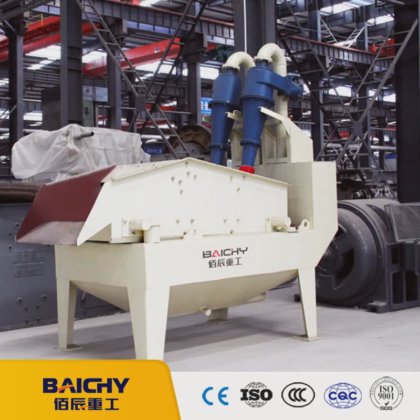

Detailed Photos
Company Profile
Henan Baichy Machinery Equipment Co.,Ltd is a heavy mining machinery manufacturer that produces five series of products: crushing equipment, sand making equipment, mineral processing equipment, grinding equipment and building materials equipment. It integrates design and R&D, processing and manufacturing, procurement management, sales and after-sales service. The products have been exported to over 150 countries and widely used in global mining and construction industry.
The company currently has more than 500 employees, more than 130 intermediate and senior technician, and more than 200,000 square meters of standardized factory buildings and modern office, R&D center, sales and after-sales centers. Over the years, Baichy Machinery has rapidly grown into an important production and export base for China's mining machinery through its advanced technology, complete scientific management system, excellent product quality and professional service. Our products have passed ISO9001 and CE international quality system certification. They are not only sold in many domestic provinces, cities and autonomous regions, but also exported to Eastern Europe, the Middle East, Africa, South Asia, Southeast Asia, West Asia, Australia, South America, North America and other countries and area.
