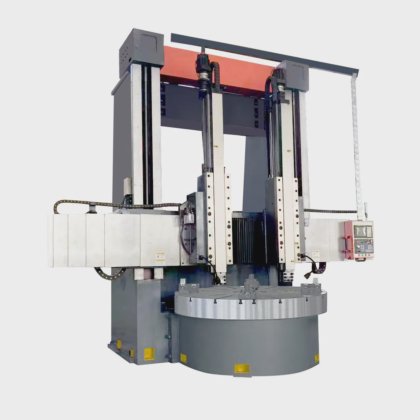

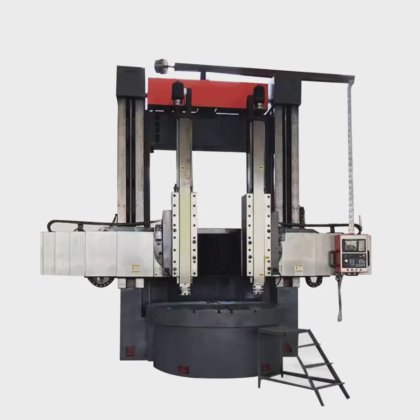

Double-Column Vertical Internal and External Metal Processing Lathe in Hebei, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Online After-Sales Service, Engineers Can Provide
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Processing accessory
- Chuck CNC Lathe
- Guide rail
- Horizontal Guide Rail
- Tool holder
- Single-tool Holder CNC Lathe
- Power source
- Manual
- Controlling mode
- CNC
- Automatic grade
- Automatic
- Setting mode
- Table
- Precision
- Normal Precision
- Certification
- CE, ISO 9001
- Max. processing diameter
- 1250mm
- Workbench diameter
- 1000mm
- Max. height of work piece
- 1000mm
- Workbench load-bearing
- 3200kg
- Workpiece table speed range
- 6.3-200 R/Min
- Tool holder feed range
- 0.8-86 mm/Min
- Maximum torque
- 1750 Nm
- Main motor power
- 22 Kw
- Specification
- 2360*2277*3403mm
- Hs code
- 84589110
- Production capacity
- 500 Pic/Year
- Category
- Vertical Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103112677
Description

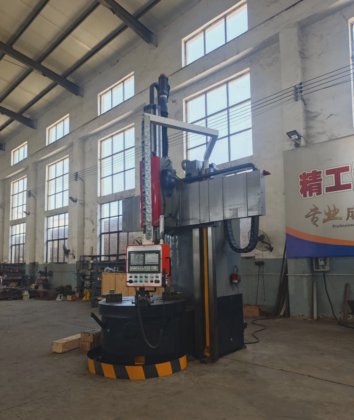

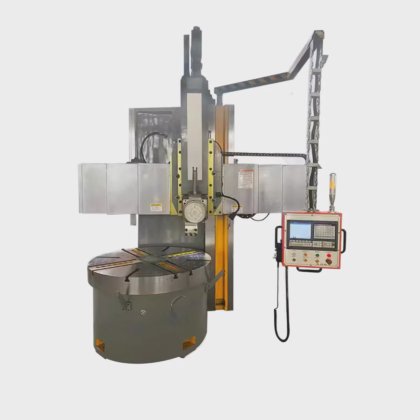

CNC Vertical Lathe Single Column Vertical Lathe
Product Parameters
Project/Specification
Unit
CK5112A

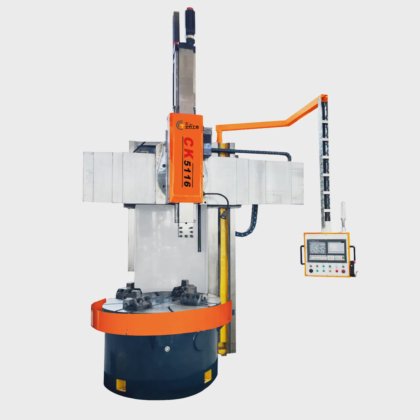

CK5116
CK5126
Max. Processing diameter
mm
1250
1600
2600
Workbench diameter
mm
1000
1400
2200
Max. Height of work piece
mm
1000
1200
1250
Workbench load-bearing
Kg
3200
5000
8000
Workbench speed range
R/min
6.3-200
5-160
2.2-70
Tool holder feed range
Mm/min
0.8-86
0.1-2000
0.8-86
Tool holder cutting force
N
2000
24500
24500
Side tool holder
Optional
Maximum Torque
Nm
1750
24500
31360
Tool holder travel level
mm
700
915
1400
Tool holder travel vertical
mm
650
800
800
Crossbeam travel
mm
650
800
890
Tool holder rotation angle
°
