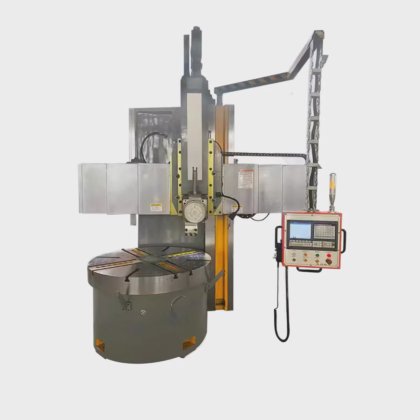

CNC Vertical Single-Column Lathes Are for Machining in Various Industries in Hebei, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Online After-Sales Service, Engineers Can Provide
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Processing accessory
- Chuck CNC Lathe
- Guide rail
- Horizontal Guide Rail
- Tool holder
- Single-tool Holder CNC Lathe
- Power source
- Manual
- Controlling mode
- CNC
- Automatic grade
- Automatic
- Setting mode
- Table
- Precision
- Normal Precision
- Certification
- CE, ISO 9001
- Max. processing diameter
- 1250mm
- Workbench diameter
- 1000mm
- Max. height of work piece
- 1000mm
- Workbench load-bearing
- 3200kg
- Workpiece table speed range
- 6.3-200 R/Min
- Tool holder feed range
- 0.8-86 mm/Min
- Maximum torque
- 1750 Nm
- Main motor power
- 22 Kw
- Specification
- 2360*2277*3403mm
- Hs code
- 84589110
- Production capacity
- 500 Pic/Year
- Category
- Vertical Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103112907
Description
Product Description
1: Internal and external cylindrical surfaces, internal and external conical surfaces, grooving
2: Circular arc surfaces and various curved surfaces
3: Rough and fine processing of threads
4: High rotation accuracy, large load-bearing capacity, small thermal deformation
5: AC servo motor, ball screw drive
6: Four-station rotary tool table, convenient tool change
7: The crossbeam vertical tool holder is equipped with a closed guard to increase the safety and ease of operation of the machine tool
8: The worktable spindle adopts precision adjustable warp clearance double-row short cylindrical stick bearing for centering, and the axial direction adopts cross-flow static pressure guide rail.
This CNC equipment has good performance, a wide range of processes, and high production efficiency. It is suitable for mechanical processing in various industries and the machinery manufacturing industry.
