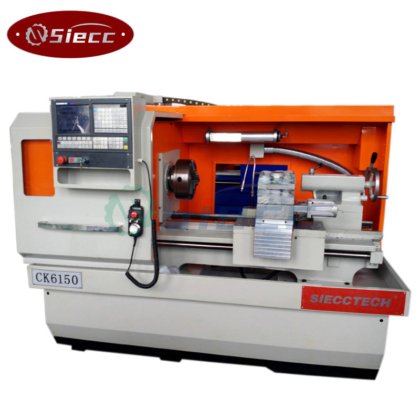

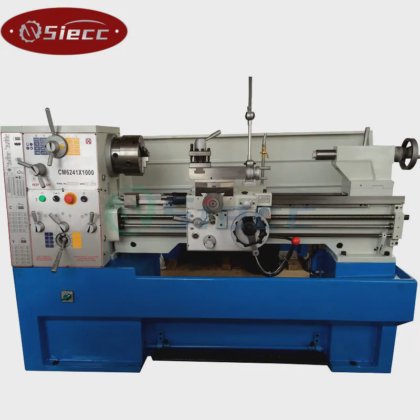

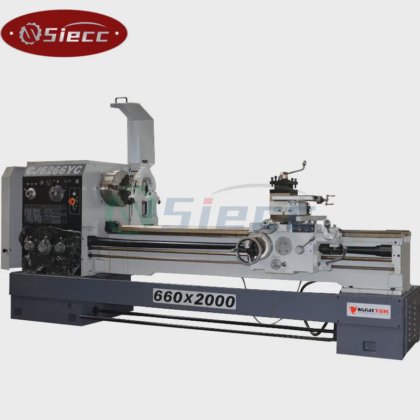

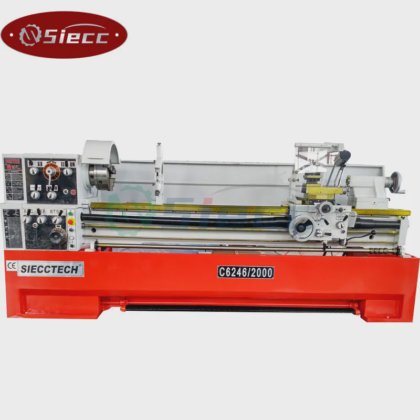

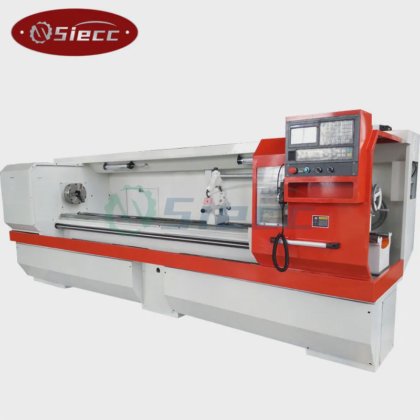

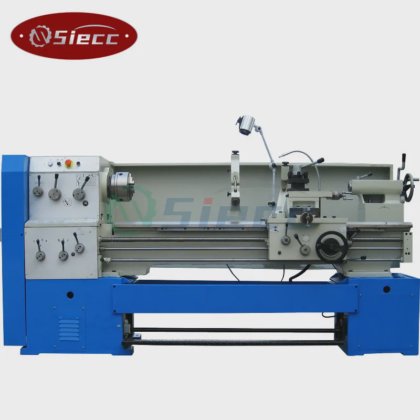

CNC Metal Lathe Machine From Siecc in Jiangsu, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Processing accessory
- Centre CNC Lathe
- Guide rail
- Horizontal Guide Rail
- Tool holder
- Single-tool Holder CNC Lathe
- Power source
- Electric
- Controlling mode
- CNC
- Automatic grade
- Automatic
- Setting mode
- Floor-type
- Precision
- High Precision
- Certification
- GS, CE, RoHS, ISO 9001
- Transport package
- Container Loaded
- Specification
- HECT
- Production capacity
- 1000 Sets/Year
- Category
- Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Automatic lathe
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103172745
Description
PRODUCT FEATURES
*THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED.
*GEARS PRECISELY GROUND TO REDUCE NOISE.
*SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION.
*RAPID FEED STRUCTRUE IS AVAILABLE ON APRON.
*INTEGRAL CASTING BASE CAN BE OPTIONAL.
TECHNICAL PARAMETERS
SPECIFICATION
LC320/1000MM
LC360/1000MM
CAPACITY
Max.swing over bed
330mm
360mm
Max.swing over cross slide
198mm
212mm
Max.swing over gap
476mm
491mm
Center Distance
1000mm
Bed Width
187mm
HEADSTOCK
Spindle hole
38mm(51mm for optional)
Spindle nose
ISO-D4
Spindle taper
MT5
Spindle speed(Number)
(8steps)70-2000rpm
FEEDS AND THREADS
Max.travel of top slide
95mm
Max.travel of cross slide
180mm
Max.size of toolshank
16*16mm2
Metric threads range
0.25-11mm
Inch threads range
4-112 T.P.I
TAILSTOCK
Dia.
