2006 Accu-Systems "HPMTH" CNC Horizontal Mortiser in Sellersburg, IN, USA
Used
Doubleclick to zoom in
Specifications
- Condition
- used
- Year
- 2006
- Phase
- 3 PHASE

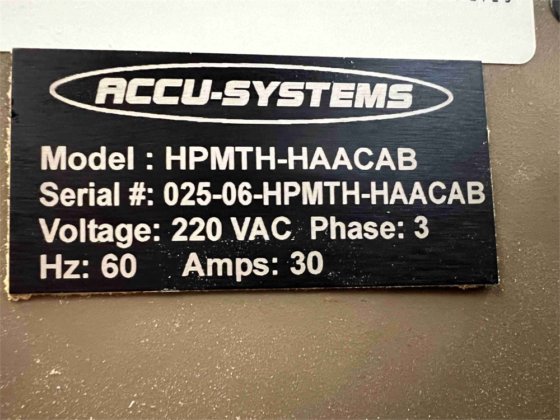

- Voltage
- 230 VOLT
- Load out period
- May 5 - 15th By appointment ONLY
- Estimated dimensions
- 16' x 5' x 7'
- Estimated weight
- 5,000 Lbs
- Load fee
- 0.00
- Category
- Mortisers and Tenoners in USA
- Subcategory
- Mortiser
- Subcategory 2
- Woodworking
- Listing ID
- 103240620
Description
Accu-Systems "HPMTH" CNC Horizontal Mortiser
The HP-Series is designed primarily for beaded face frames; the machine has separate spindles to haunch, mortise, and tenon.
Set up with (2) Zones for rails and (2) zones for stiles; operator uses color touch-screen to enter program information.
15" Color touch-screen for data input, function controls, and monitoring; 120" zone for stiles, left- & right-hand fence; 12" zone for rails, left- & right-hand fence.

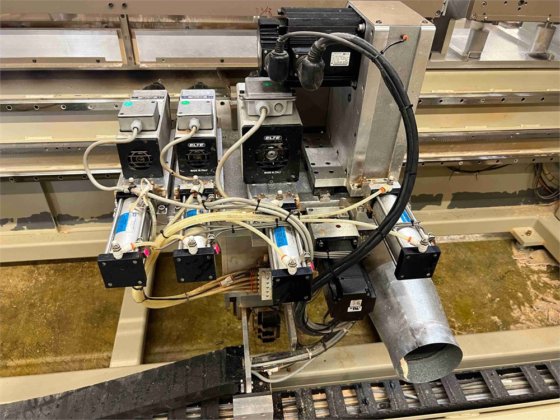

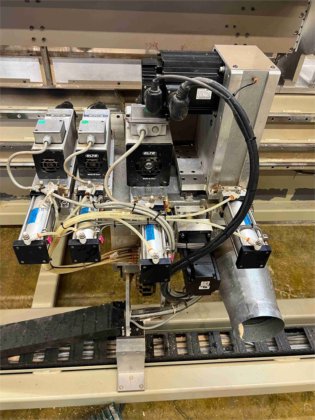

3 HP Spindle for mortise, 3 HP spindle for tenon, 6 HP spindle for haunching.
X-Axis rack & pinion CNC control, Y-axis rotary ball screw CNC control, Z-axis rotary ball screw CNC control.
Pop-up CNC controlled rear fence, Servo controlled fence for edge reference, special clamping and material backer.
