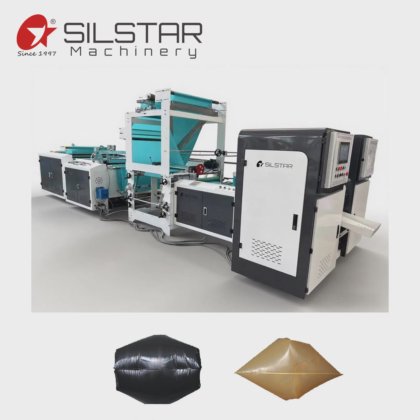

Automatic Bottom Seal Folded Black Garbage Bag on Roll Making Machine Continuous Roll Plastic Bag Making Machine with C/M/Z Fold in Jiangsu, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Lines
- 1
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Voltage
- 220V/380V
- Speed
- High
- Continuous-rolled
- Yes
- Sealing & cutting
- Heat-Sealing Cold-Cutting
- Layer
- Single
- Machine type
- Bag Making Machine
- Computerized
- Computerized
- After-sale service provided
- Engineers Available to Service Machinery Overseas
- Machine inverter brand
- Made in Taiwan
- Servo motor
- Made in Taiwan
- Material
- HDPE,LDPE
- Machine control
- PLC ,Touch Screen
- Loading
- Two Air Cylinders
- Rewinder way
- Automatic Rewinder
- Temperature controller
- Made in Taiwan
- Fold unit
- Two Triangle Fold
- Rewinder
- Two Pins ,Pneumatic
- Transport package
- Wrapping Film Packing or Packed in Wooden Case
- Specification
- CE, ISO9001: 2008, SGS, TUV
- Hs code
- 84778000
- Category
- Garbage trucks in China
- Subcategory
- Bag making machine
- Subcategory 2
- Packaging & printing
- Subcategory 3
- Plastic bag making machine
- Subcategory 4
- Machinery for packaging supplies
- Listing ID
- 103635833
Description
Product Description
The machine is specialized in producing flat bag with double fold / single fold bag on roll.
1. Automatic counting , PLC and screen controll.
2. Servo motor control speed and bag length.
3. Photoelectric eye track, automatic shutdown when the wrong mark.
4. It is suitable for all kinds of low density polyethylene plastic film (LDPE), high density polyethylene (HDPE) film bags, etc..
5. Widely used in big garbage bag, common gorbage bag and pet gargage bag.
Machine brand: SILSTAR
Product Parameters
Model
GBDR-700
GBDR-1000
GBDR-1200
Bag making width
100-150mm
100-250mm
100-300mm
Roller width
600mm
900mm
1100mm
Bag making length
200-1500mm
200-1500mm
200-1500mm
Bag making thickness
0.008-0.03mm
0.008-0.03mm
0.008-0.03mm
Bag making speed
30-120pcs/min
The kind of bag making
Color printing bags ; white bags
Bag making methods
Double folded bag ;
