Plastic Film Blowing Machine with Double Rewinder in Jiangsu, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Raw material
- PE
- Maximum folding width of film
- 1200mm
- Screw diameter
- 65mm
- Automation
- Automatic
- Computerized
- Computerized
- Certification
- CE, ISO9001:2008, TUV
- Machine inverter brand
- Made in Taiwan
- Rewinder ways
- Double Rewinder
- Screw length proportion
- 28:1
- Film blowing thickness
- LDPE0.015-0.20mm, HDPE0.008-0.05mm
- Optional device1
- Corona
- Optional device2
- Rotary Die Head
- Optional device3
- Auto Loader
- Optional device
- Auto Weight Measurement
- Transport package
- Wrapping Film Packing or Packed in Wooden Case
- Specification
- CE ISO9001: 2008 SGS, TUV
- Hs code
- 84773090
- Category
- Film Blowing Machines in China
- Subcategory
- Plastic machinery
- Subcategory 2
- Manufacturing & processing machinery
- Listing ID
- 103637838
Description
Brand: SILSTAR
Characteristics
SILSTAR ERTRUDER is used for blowing HDPE and LDPE and has double rewinder ,which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
Parameter
Model
GBCE-1200
Screw diameter
65mm
Screw length proportion
28:1
Film blowing width
300-1200mm
Film blowing thickness
LDPE0.015-0.20mm, HDPE0.008-0.05mm
Output
20-80kg/h
Main motor power
37kw
Dimension of the machine
5400*3000*6800mm
Total weight
4200kg

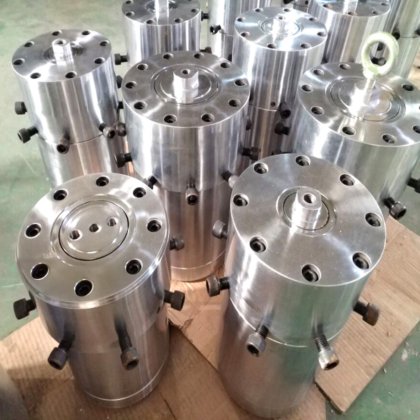

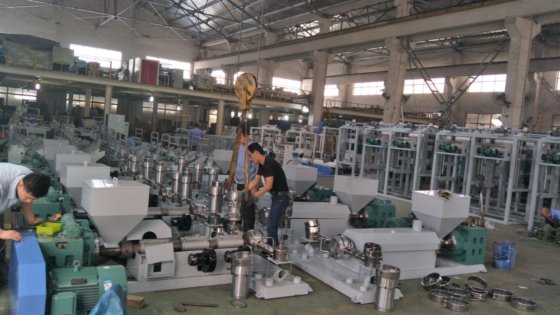

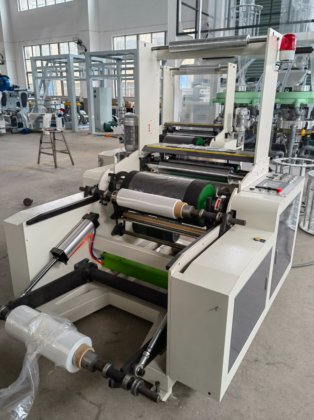

Details of machine
