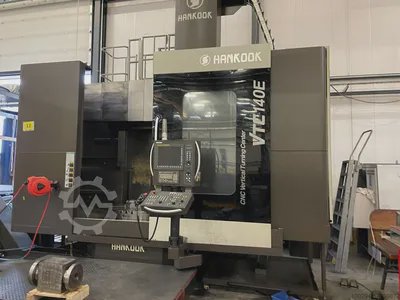

HANKOOK VTC140E Ram Type Vertical Boring & Turning Machine with C-Axis & Driven Tools in Elk Grove Village, IL, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2014
- Stock number
- 22042
- Table dia
- 55"
- Swing
- 63"
- Work ht-u/r
- 55"
- Power
- 45 kW 50 HP
- Rpm
- 30 RPM
- Control
- CNC (FANUC 32iA)
- Dimensions
- 192"L x 153"W x 204.3"H
- Weight
- 31,000 kgs 68,200 LBS
- Max. turning diameter ø
- 1600 mm 63"
- Table diameter ø
- 1400 mm 55"
- Max turning diameter
- 1600 mm 63"
- Max turning height
- 1400mm 55.4"
- Stroke ram left
- 900 mm 35.4"
- Vertical travel of crossrail
- 700mm 27.5"
- Atc / revolver
- 24 Tools
- Turning
- 12 Tools
- Rotary tools
- 12 Tools
- Speeds / ranges
- 320 RPM
- Maximum turning height
- 1400 mm 55"
- C-axis
- 360.000 °
- Cross rail rapid traverse
- 11.8" IPM
- Spindle taper
- ISO #50
- Power live tools
- 20 kW 25 HP
- Rotary tool rpm
- 3,000 RPM
- Rapid traverse x axis
- 295 IPM
- Rapid traverse z axis
- 295 IPM
- Length
- 4875 mm 192"
- Width
- 3885 mm 153"
- Height
- 5190 mm 204.3"
- Category
- Boring Mills in USA
- Subcategory
- Machinery
- Subcategory 2
- Machine tools
- Subcategory 3
- Vertical boring mills (incld vtl)
- Listing ID
- 103685429
Description
HANKOOK VTC140E Ram Type Vertical Boring & Turning Machine with C-Axis & Driven Tools
HEAVY DUTY 3-AXIS FIXED & ELEVATING CROSSRAIL RAM TYPE CNC VERTICAL BORING AND TURNING MACHINE WITH HARDENED & GROUND BOX GUIDEWAYS, C-AXIS & LIVE TOOLS
FEATURES
Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity.
Heavy Duty Hardened and Ground Slideways to Provide Increased Stability and Rigidity.
2 Step Automatic Gear Change.
24 Position Tool Magazine.

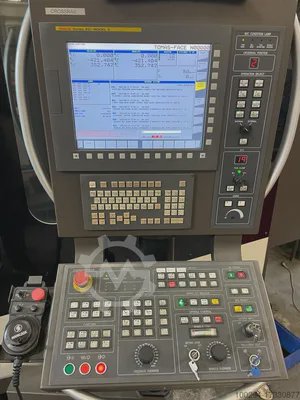

FANUC 32iA CNC
Founded in 1969, Hankook Machine Tools Co Ltd is a specialist manufacturer of high-technology CNC metalworking machine tools steeped in history and located in Changwon, Korea. The company currently employs 150 people and supplies its highly-reputable products to over 70 countries worldwide.
HEAVY DUTY 3-AXIS FIXED & ELEVATING CROSSRAIL RAM TYPE CNC VERTICAL BORING AND TURNING MACHINE WITH HARDENED & GROUND BOX GUIDEWAYS, C-AXIS & LIVE TOOLS
CHIP CONVEYOR & CHIP BUCKET
30 BAR THROUGH SPINDLE COOLANT SYSTEM
