B&R operator panel BRRTM3-0 with display and RS232 interface in Lennestadt, North Rhine-Westphalia, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Display
- LCD display (green background)
- Interface
- RS232 (Sub-D socket, 9-pin)
- Care
- via rear screw terminal
- Installation depth
- about 40 mm
- Front panel dimensions
- approx. 160 × 135 mm
- Subcategory
- Parts
- Subcategory 2
- Electronics
- Listing ID
- 103788344
Description
B&R Operator Panel BRRTM3-0 with Display and RS232 Interface
Item Number:
BRRTM3-0
Serial Number:
13130142830300180109
Description:

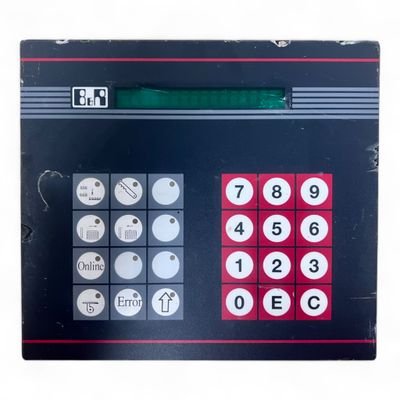

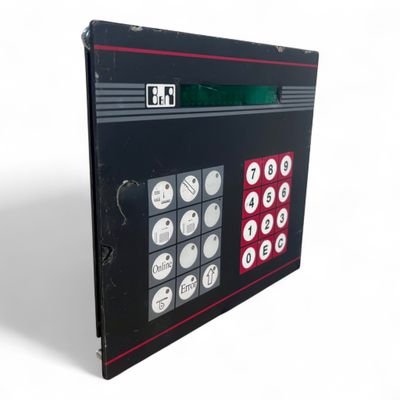

This industrial operator panel from B&R (Bernecker & Rainer), model number BRRTM3-0, is a compact input system with an integrated display and numeric keypad. It was designed for controlling and parameterizing machines and systems. The front panel features a membrane keyboard with a numeric keypad, function keys, and status indicators (e.g., "Online," "Error"). Connection is via an RS232 interface (9-pin Sub-D) and a screw terminal block (orange, 5-pin).
Technical Features:
Keyboard: 4×4 matrix with control and function keys

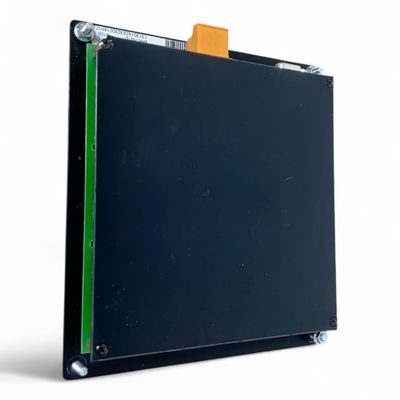

Case: Metal frame with black front panel, reinforced rear panel
Condition:
Used, with clear signs of wear. The film on the left side is torn (see pictures). The device comes from a working system.
